Worm Drive Clamps 126 & 177
#CLAMPOET3
Product Description
Worm Drive Clamps 126 & 177
Main Features:
- Durable: The improved surface pressure is achieved
through curled, burr-free edges, with the optimized band surpassing the DIN
3017 standard.
- Reliable: The curled strip with burr-free edges
ensures that the hose remains undamaged while providing optimal sealing.
- Worker-friendly: Designed to accommodate multiple
diameters, it allows for quick and easy servicing using a standard screwdriver
or torque wrench.
Main Specifications:
Material 126
- W2 Band and housing:
Stainless Steel, material no. 1.4016/UNS S43000
- Hexagon-head screw: steel,
zinc-plated
Material 177
- W3 All parts
Stainless Steel, material no. 1.4016/UNS S43000
- W4 All parts
Stainless Steel, material no. 1.4301/UNS S30400
Standard Series
|
Diameter range |
Width × Thickness |
|
8.0 – 32.0 mm |
9.0 x 0.6 mm |
|
25.0 – 160.0 mm |
9.0 x 0.7 mm |
|
25.0 – 390.0 mm |
12.0 x 0.8 mm |
Click to download : 126_177_Worm_Drive_Clamps BrochureVarious Industry Products
Additional Information
| NESPL Code | CLAMPOET3 |
| Manufacturer Code | 126 & 177 |
| Manufacturer | Oetiker |
| Type | Clamps |
Related Products
ToothLock® Ear Clamps 293
NESPL Code - #CLAMPOET1
StepLess® Ear Clamps - Next Generation - 123 & 193
NESPL Code - #CLAMPOET2
Multi Crimp Rings Spirally Welded 150 – Stainless Steel
NESPL Code - #CLAMPOET4
Multi Crimp Rings Cross Welded 250
NESPL Code - #CLAMPOET5

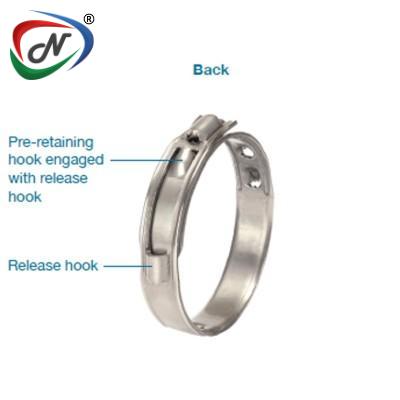

Reusable Low-Profile Clamps 268
