SI30CE02UN23 Si-30 Versatile technology Mini Condensate Removal Pumps
#NESPLSAUERMANNPUMP4
Product Description
SI30CE02UN23 Si-30 Versatile technology Mini Condensate Removal Pumps
The Si-30, known for its high performance, is ideal for
air-conditioning units with a capacity of up to 20 kW.
The piston technology has been meticulously engineered to
effectively eliminate condensates from air conditioning systems.
The Si-30 guarantees reliability in all types of
environments. Its operational sound level remains quiet, regardless of the
condensate volume.
Main Features:
- Patented Piston Technology
- Anti-siphon feature, which extends the pump's lifespan
- Quiet operation: 20 dBA
Main Specifications:
- Max
flow rate: 5 gph
20 l/h
- Max discharge head: 33 ft 10 m
- Max pressure: 46 feet 14 m
- Max suction head: 10 feet 3 m
- Insulation
class: Double insulation
- Mains
supply: 230V~ 50Hz - 14 W
- Operation
conditions: 100%
- Protection:
IP20
- Master
pack quantity: 20
- Safety
switch: NC 3 A resistive load – 250 V
- Detection:
Detection unit
Kit Contains:

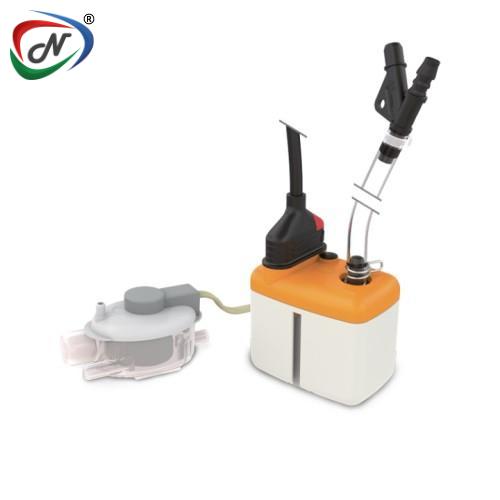

- 1 Si-30 pump
- 1 Clear PVC tube Ø int. 6 mm – L: 1m, fitted with a ‘‘Drain
Safe Device’’ pre-mounted
- 1 Anti-vibration mounting bracket
- 1 1.5 m lockable plug-in power cable: 2 power wires, 2
safety switch wires
- 6 Tie wraps, 2.5 x 100 mm
- 1 Detection unit (SI2958, 1.5 m cable)
- 1 Rubber elbow 90°
- 1 Vent tube Ø int 4 x L 75 mm
- 1 Mounting rail
- Adhesive
Note: Sauermann SI Series – Globally Certified with CE, UKCA, EAC, ISO 9001, REACH, RoHS & TSCA Compliance
Click to download : DS_SAUERMANN_SI30CE02UN23 DATA SHEET Click to download : N004_02-2531_wIRING DIAGRAM Si-30 Click to download : USER MANUAL
REFRIGERATION / HVAC INDUSTRY
Additional Information
| NESPL Code | NESPLSAUERMANNPUMP4 |
| Manufacturer Code | SI30CE02UN23 |
| Manufacturer | Sauermann |
Related Products
Sauermann -Si-82 Pump SI82CE01UN23
NESPL Code - #NSSP008307
Sauermann- Si-27 Pump SI27CE01UN23
NESPL Code - #NSSP008311
Sauerman Mini Condensate Removal Pump Omega Pack 2
NESPL Code - #NESPLSAUERMANPUMP1

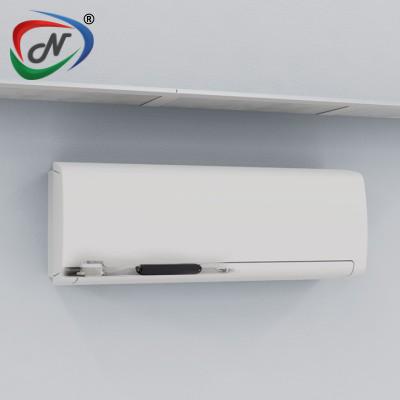

SI20CE02UN23 Sauermann Mini Condensate Removal Pump New Si-20
