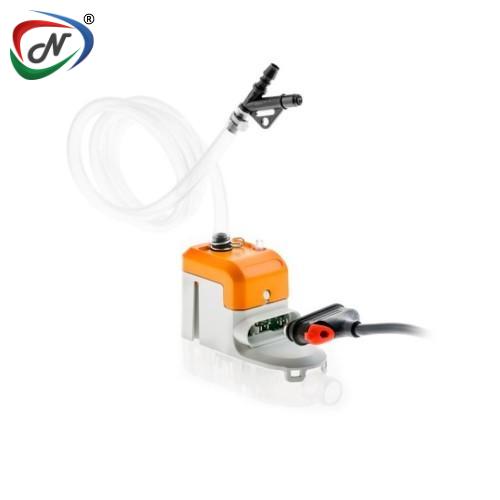

Sauermann Si-10 SI10UL02UN23 Mini Condensate Removal Pump

Sauermann Si-10 SI10UL02UN23 Mini Condensate Removal Pump

This pump features an integrated detection unit, making it suitable for installation in confined areas.

The Sauermann Si-10 Mini Condensate Removal Pump is a compact and reliable solution designed for efficient condensate evacuation from air-conditioning systems. Equipped with an integrated detection unit, it automatically senses condensate levels and activates precise pumping, ensuring safe and continuous operation. Its slim, space-saving design makes it ideal for installation in confined or hard-to-reach areas such as wall-mounted split units. The pump operates quietly, delivering dependable performance without disturbing the environment. Built with high-quality components, the Si-10 Mini offers long service life, easy installation, and enhanced protection against overflow, making it a trusted choice for professional HVAC applications.

Key Features:

• Mounting bracket
• Integrated detection unit
• Compact monobloc design

Technical details

• Max flow rate: 5 gph 19 l/h
• Max discharge head: 33 ft 10 m
• Max pressure: 46 feet 14 m
• Insulation class: Double insulation
• Mains supply: 230V: (SI10UL01UN23)
• Operation conditions: 70%: 3s ON - 1s OFF
• Master pack quantity: 25
• Safety switch: NC 3 A resistive load – 250 V
• Detection: Integrated Detection Unit

Kit Contains:

• 1 Si-10 piston pump, with integrated float detection unit
• 1 Anti-vibration mounting bracket
• 1 Power Cable, 5' (2 power wires, 2 safety wires)
• 1 90 Deg Rubber Elbow, 19/32" i.d. x L 2 1/3"
• 1 Vent Tube, 5/32" i.d. x L 2 15/16"
