SI20CE02UN23 Sauermann Mini Condensate Removal Pump New Si-20

#NESPLSAUERMANPUMP2

Product Description

SI20CE02UN23 Sauermann Mini Condensate Removal Pump New Si-20

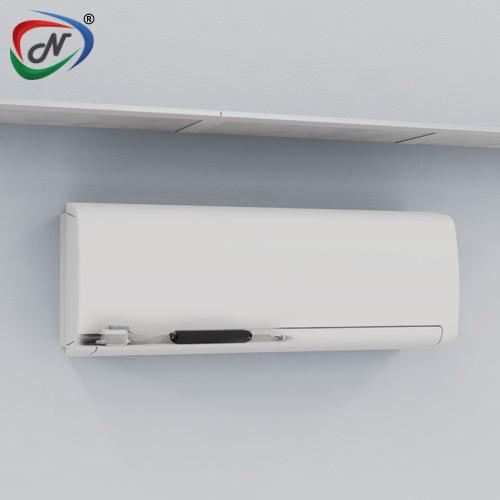

Fits discreetly inside the air conditioning unit.

The Si-20 establishes a new benchmark with its slender casing design, enabling it to seamlessly fit within any air conditioning unit or line set cover.

Offering superior performance and sound levels for a mini pump of its dimensions, this model provides unparalleled reliability.

The patented piston pump technology, which ensures a high level of energy efficiency, is engineered to eliminate condensates from air conditioning units with a capacity of up to 20 kW.

Main Features:

Quiet
Dependable and environmentally friendly
Simple installation
Extremely powerful
Plug and play

Main Specifications:

Max flow rate: 5 gph 20 l/h
Max discharge head: 33 ft 10 m
Max pressure: 46 feet 14 m
Max suction head: 10 feet 3 m
Insulation class: Double insulation
Mains supply: SI20UL02UN12: 120 V~ 60 Hz - 13 W / SI20UL02UN23: 208 - 230 V~ 50/60 Hz - 15 W
Operation conditions: 100 % - Continuous duty
Protection: IPX2
Weight: 460 g
Master pack quantity: 6
Safety switch: NC 3 A resistive load – 250 V
Detection: Detection unit

Kit Contains:

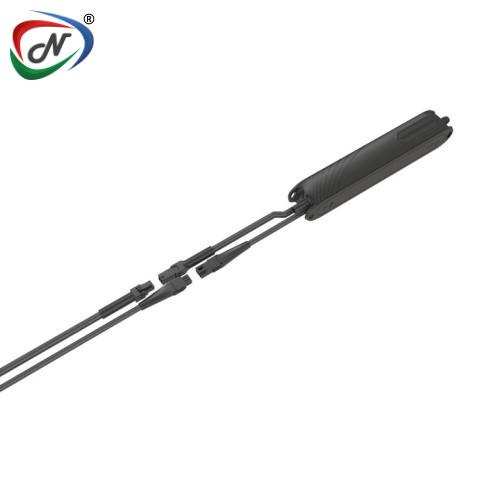

1 Piston pump with connectors: 1.5 m power supply cable, pump cable 0.2 m
1 Detection unit with connector (1.5 m power cable)
1 Clear PVC tube int. Ø 6 mm - L 60 mm, fitted with pre-mounted “Drain Safe Device” connector.
1 Rubber elbow 90° int. Ø 15 mm x L 152 mm
1 Vent tube int. Ø 4 mm x L 75 mm
1 Mounting rail
1 Adhesive
