DP10CE05UN23 Mini condensate removal pumps Delta Pack (80x60) Signal white

#NESPLSAUERMANPUMP3

Product Description

DP10CE05UN23 Mini condensate removal pumps Delta Pack (80x60) Signal white

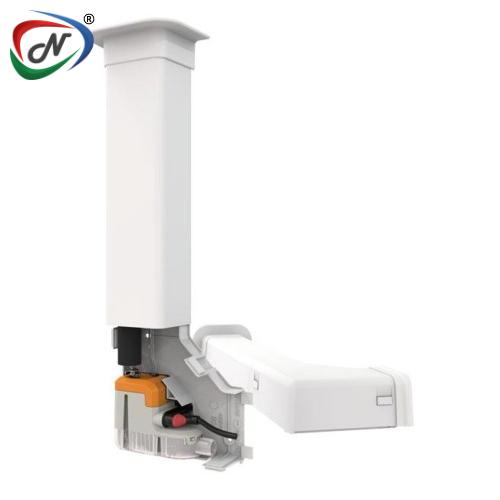

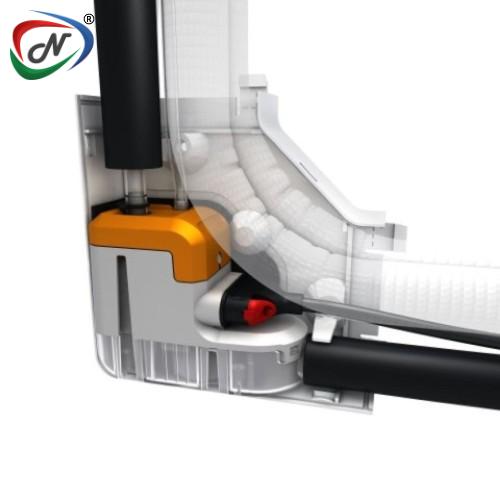

The Delta Pack 80x60 features an innovative elbow design that allows for easy manual opening with just a finger push—no tools required. Its sleek design is a perfect match for wall-mounted air conditioning units. Additionally, it comes equipped with the Si-10 UNIVERS’L pump, which utilizes the most advanced piston pump technology.

Main Features:

Unparalleled reliability
Simple plug-in electrical connection
Minimal sound level: 22dBA

Main Specifications:

Max flow rate: 5 gph 20 l/h
Max discharge head: 33 ft 10 m
Max pressure: 46 feet 14 m
Insulation class: Double insulation
Mains supply: 230V ~ 50/60Hz ~ 14W
Operation conditions: 100%
Protection: IPX4
Color: RAL 9003
Master pack quantity: 5
Safety switch: NC 3 A resistive load – 250 V
Detection: Integrated detection floats

Kit Contains:

Si-10 piston pump, with integrated float detection unit
Clear PVC tube (6mm internal diameter - length 1m - foam-insulated over 800mm), fitted with a Drain Safe Device pre-mounted)
1,5 m lockable plug-in power cable, with 2 power wires and 2 safety contact wires
Duct
2 part elbow (base + cover)
Ceiling duct cover
Elbow/Duct gasket
Rubber elbow/split gasket
Rubber tube (internal diameter 15 mm - connects to split)
Vent pipe
6 screws and plugs for fixing duct and elbow
2 pipe clamps
