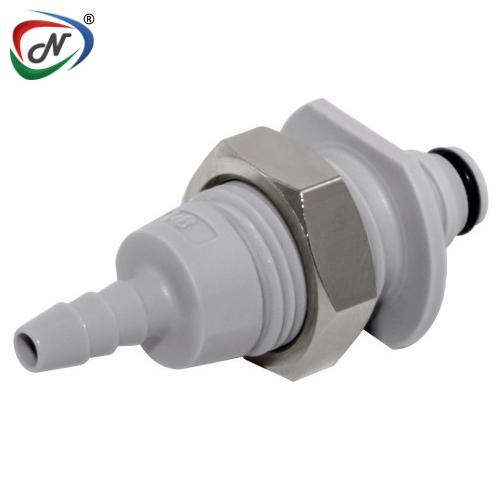

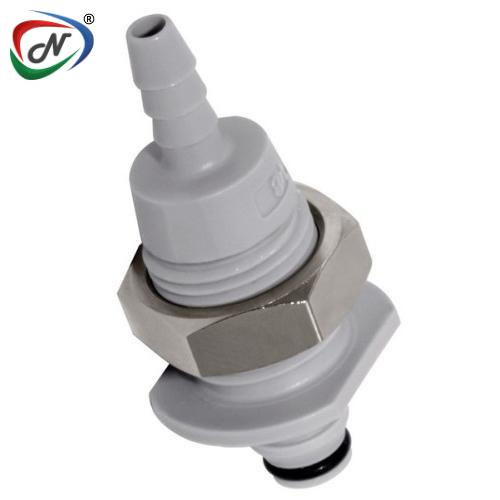

NS1D420212 1/8 HB Valved Panel Mount Coupling Insert
#NSSP007304
Product Description
NS1D420212 1/8 HB Valved Panel Mount Coupling Insert
Main Specifications:
- Material: Polypropylene
- Material
Finish: Molded Grey
- Pressure
Range: Vacuum to 15 psi, 1.0 bar
- Color: Gray
- Mounting
Option: Panel Mount
- Temperature
Range: 32°F - 120°F (0°C - 49°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless Steel
- Valve
Options: Valved
- Body
Type: Inserts
- Spillage: <0.02
cc per disconnect, 0.01 cc per connect
- Bag
Qty: 25
- Non-spill
design
- Ultra
low air inclusion
- Intuitive
interface
- Rotating
design
- Chemically
resistant materials
Main Benefits:
- Closed
system for drip-free disconnect
- Minimizes
contaminants, eliminates the need to purge air bubbles from the system
- User
friendly ergonomic design enables a secure, reliable connection
- Allows
tubing to move freely or relax without kinking or leaking
- Reliable
strength and performance in a range of applications
Click to download : CPC-NS1-Spec-Sheet
Commercial Kitchen Equipment Parts
Additional Information
| NESPL Code | NSSP007304 |
| Manufacturer Code | NS1D420212 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
