NS1D24042812V 1/4-28 Male Thread Valved In-Line Coupling Insert FKM Seal
#NSSP007309
Product Description

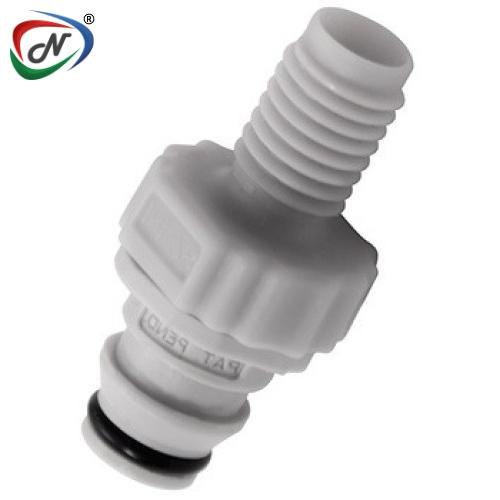

NS1D24042812V 1/4-28 Male Thread Valved In-Line Coupling Insert FKM Seal
Main Features:
- Non-spill design
- Ultra low air inclusion
- Intuitive interface
- Rotating design
- Chemically resistant materials
Main Benefits:
- Closed system for drip-free disconnect
- Minimizes contaminants, eliminates the need to purge air
bubbles from the system
- User friendly ergonomic design enables a secure, reliable
connection
- Allows tubing to move freely or relax without kinking or
leaking
- Reliable strength and performance in a range of applications
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded
Grey
- Pressure Range: Vacuum
to 15 psi, 1.0 bar
- Color: Gray
- Mounting Option: Free
Floating
- Temperature Range:
32°F - 120°F (0°C - 49°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Spillage: <0.02 cc per disconnect, 0.01 cc per connect
- Bag Qty: 25
Click to download : CPC-NS1-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007309 |
| Manufacturer Code | NS1D24042812V |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
