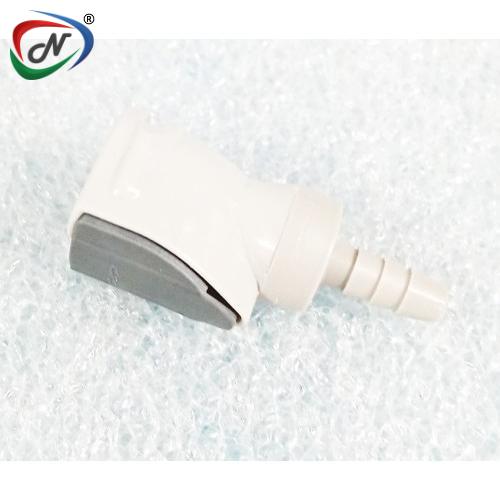

NS1D170212 1/8 Hose Barb Valved In-Line Coupling Body

NS1D170212

1/8 Hose Barb Valved In-Line Coupling Body

Main Advantages:

• Drip-free disconnection with a closed system.
• Eliminates the need to remove air bubbles from the system, reducing contaminants.
• Ergonomic design ensures a secure and reliable connection, making it user-friendly.
• Prevents tubing from kinking or leaking, allowing for free movement and relaxation.
•  Provides reliable strength and performance across various applications.

Key Features:

• Non-spill design prevents any spills or leaks.
• Ultra low air inclusion minimizes the presence of air bubbles.
• Intuitive interface for easy operation and understanding.
• Rotating design adds flexibility and convenience.
• Made with chemically resistant materials for durability and longevity.

Main Specifications:

• Material: Polypropylene
• Material Finish: Molded Grey
• Pressure Range: Vacuum to 15 psi, 1.0 bar
• Color: Grey
• Mounting Option: Free Floating
• Temperature Range: 32°F - 120°F (0°C - 49°C)
• Seal Options: EPDM
• Valve Spring: 316 Stainless Steel
• Valve Option: Valved
• Body Type: Body
• Spillage: <0.02 cc per disconnect, 0.01 cc per connect
• Bag Qty: 25

COUPLING BODIES - Polypropylene

TERMINATION	IN-LINE HOSE BARB
TUBING/THREAD SIZE	1/8” ID
METRIC EQ.	3.2 MM ID
SHUTOFF	NS1D170212

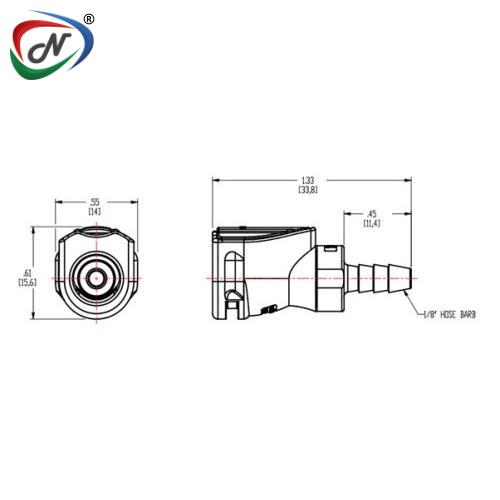

A (Height/Diameter)	0.61 (15.5)
B (Total Length)	1.33 (33.8)

















                                                                                                                                                                                                                                       *All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.                                                                                                                              WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

 Note: Image is just for ref.
