NS1D26042812 1/4-28 Flat Bottom Port Valved In- Line Coupling Insert
#NSSP007307
Product Description

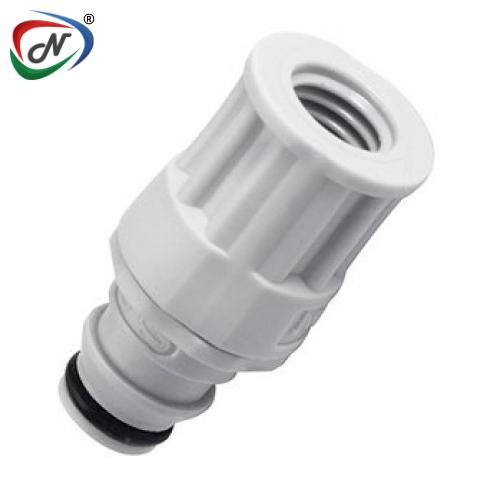

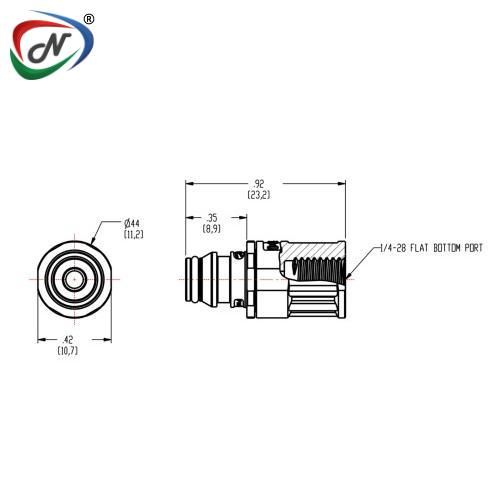

NS1D26042812 1/4-28 Flat Bottom Port Valved In- Line Coupling Insert
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 15 psi, 1.0 bar
- Color: Gray
- Mounting Option: Free Floating
- Temperature Range: 32°F - 120°F (0°C - 49°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Spillage: <0.02 cc per disconnect, 0.01 cc per connect
- Bag Qty: 25
Main Features:
- Non-spill design
- Ultra low air inclusion
- Intuitive interface
- Rotating design
- Chemically resistant materials
Main Benefits:
- Closed system for drip-free disconnect
- Minimizes contaminants, eliminates the need to purge air bubbles from the system
- User friendly ergonomic design enables a secure, reliable connection
- Allows tubing to move freely or relax without kinking or leaking
- Reliable strength and performance in a range of applications
Click to download : CPC-NS1-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007307 |
| Manufacturer Code | NS1D26042812 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
