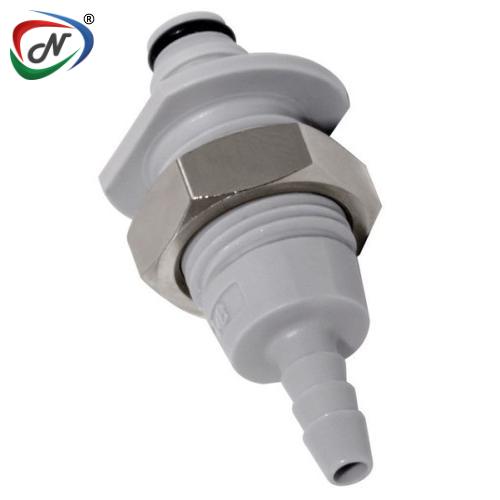

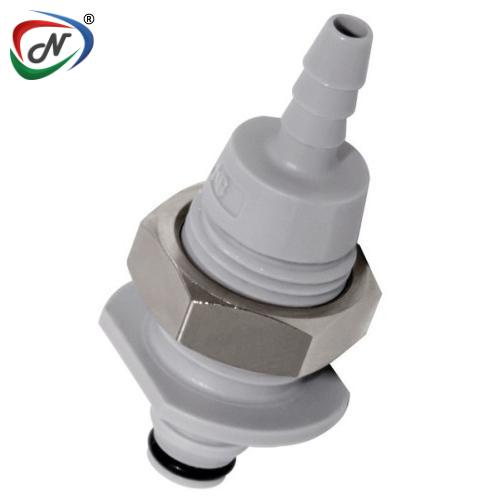

NS1D420212HC 1/8 HB Valved Panel Mount Coupling Insert Hastelloy-C® Spring
#NSSP007302
Product Description
NS1D420212HC 1/8 HB Valved Panel Mount Coupling Insert Hastelloy-C® Spring
Main Features:
- Non-spill design
- Ultra low air inclusion
- Intuitive interface
- Rotating design
- Chemically resistant materials
Main Benefits:
- Closed system for drip-free disconnect
- Minimizes contaminants, eliminates the need to purge air bubbles from the system
- User friendly ergonomic design enables a secure, reliable connection
- Allows tubing to move freely or relax without kinking or leaking
- Reliable strength and performance in a range of applications
Main Specifications:
- Material: Polypropylene
- Material
Finish: Molded Grey
- Pressure
Range: Vacuum to 15 psi, 1.0 bar
- Color: Gray
- Mounting
Option: Panel Mount
- Temperature
Range: 32°F - 120°F (0°C - 49°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless Steel
- Valve
Option: Valved
- Body
Type: Inserts
- Shipping/Storage
Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage:
<0.02 cc per disconnect, 0.01 cc per connect
- Bag
Qty: 25
Click to download : CPC-NS1-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007302 |
| Manufacturer Code | NS1D420212HC |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
