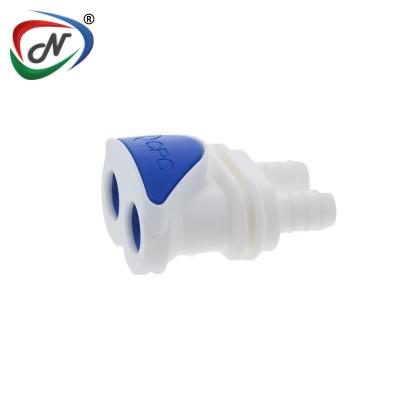

DPC22004 1/4 Hose Barb Non-Valved In-Line Coupling Insert

#NCPC274

Product Description

DPC22004

1/4 Hose Barb Non-Valved In-Line Coupling Insert

Main Features:

  • Single thumb latch
  • Insert keyed to body
  • Compact, modular design
  • Integral terminations

Main Benefits:

  • Intuitive one step, two-line connection & disconnection
  • Ensures correct directional flow
  • Attractive, high-quality appearance and configuration flexibility
  • Fewer moving parts, shorter assemblies, faster installations

Main Specifications:

  • Material: Acetal
  • Material Finish: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: White
  • Mounting Option: In-Line
  • Temperature Range: 32°F - 180°F (0°C - 82°C)
  • Seal Options: BUNA-N
  • Valve Option: Non-Valved
  • Body Type: Insert
  • Bag Qty: 25

COUPLING INSERTS - Acetal

TERMINATION

IN-LINE HOSE BARB

TUBING/

THREAD SIZE

1/4" ID

METRIC

EQ.

6.4mm ID

STRAIGHT

THRU

DPC22004

SHUTOFF

DPCD22004

A(Height/Diameter)

1.62 (41.1)

B (Total Length)

1.97/2.11 (50.0/53.6)

C (Center-to-center distance)

0.75 (19.1)

*All measurements are in inches (millimetres) unless otherwise noted.



Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NCPC274
Manufacturer Code DPC22004
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
