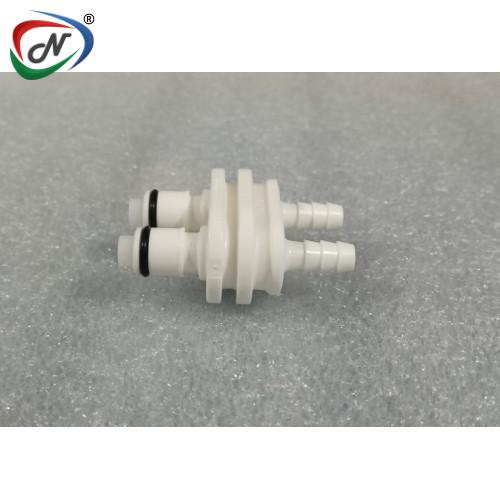

DPCD22004 1/4 HOSE BARB VALVED IN-LINE COUPLING INSERT
#NSSP003553
Product Description
DPCD22004 1/4 HOSE BARB VALVED IN-LINE COUPLING INSERT
MAIN FEATURES:
- Single thumb latch
- Insert keyed to body
- Compact, modular design
- Integral terminations
MAIN BENEFITS:
- Intuitive one step, two-line connection and disconnection
- Ensures correct directional flow
- Attractive, high-quality appearance and configuration flexibility
- Fewer moving parts, shorter assemblies, faster installations
Main Specifications:
· Material: Acetal
· Material Finish: White
· Pressure Range: Vacuum to 120 psi, 8.3 bar
· Color: White
· Mounting Option: In-Line
· Temperature Range: 32°F - 180°F (0°C - 82°C)
· Seal Options: BUNA-N
· Valve Spring: 316 Stainless Steel
· Valve Option: Valved
· Body Type: Insert
· Bag Qty: 25
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ. | 6.4mm ID |
STRAIGHT THRU | DPC22004 |
SHUTOFF | DPCD22004 |
A(Height/Diameter) | 1.62 (41.1) |
B (Total Length) | 1.97/2.11 (50.0/53.6) |
C (Center-to-center distance) | 0.75 (19.1) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
Click to download : CPC-DPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003553 |
| Manufacturer Code | DPCD22004 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.017kg |
| Type | Quick Fittings |
