DPC17006 3/8
#NSSP004769
Product Description

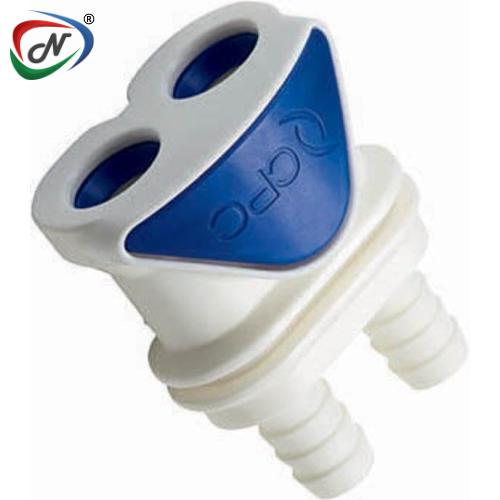

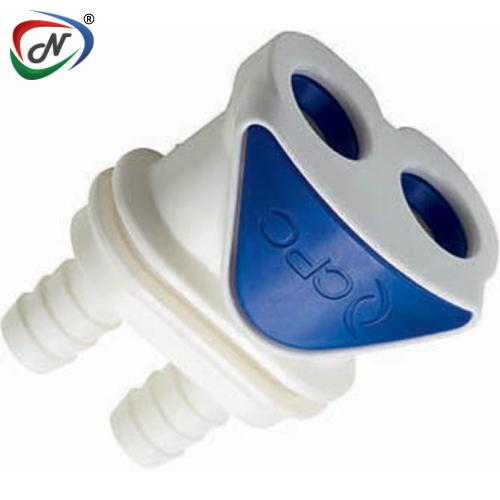

DPC17006 3/8" Hose Barb Non-Valved In-Line Coupling Body
|
Features |
Benefits | ||
|
Single thumb latch |
Intuitive one step,
two-line connection and disconnection | ||
|
Insert keyed to body |
Ensures correct directional flow | ||
|
Compact, modular design |
Attractive,
high-quality appearance and configuration flexibility | ||
|
Integral terminations |
Fewer moving parts, shorter
assemblies, faster installations | ||
Main Speicifications:
- Material: Acetal
- Material Finish: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: In-Line
- Temperature Range: 32°F - 180°F (0°C - 82°C)
- Valve Options: Non-Valved
- Body Type: Bodies
- Bag Qty: 25
COUPLING BODIES - Acetal
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 3/8” ID |
METRIC EQ. | 9.5mm ID |
STRAIGHT THRU | DPC17006 |
SHUTOFF | DPCD17006 |
A (Height/Diameter) | 1.62 (41.1) |
B (Total Length) | 1.72 (43.7) |
C (Center-to-center distance) | 0.75 (19.1) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004769 |
| Manufacturer Code | DPC17006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Parts / Accessories |
