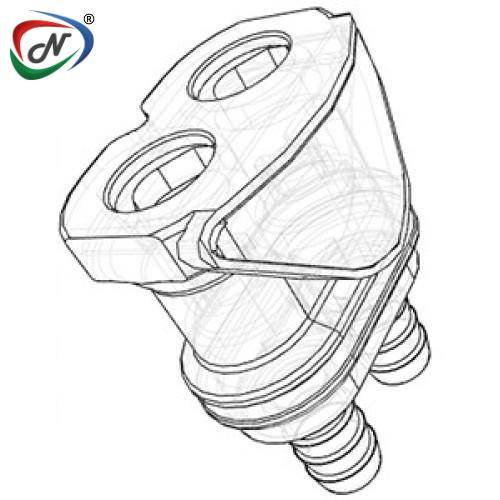

DPCD17006 3/8" Hose Barb Valved In-Line Coupling Body
#NSSP004774
Product Description
DPCD17006 3/8" Hose Barb Valved In-Line Coupling Body
Main Features:
- Single thumb latch
- Insert keyed to body
- Compact, modular design
- Integral terminations
Main Benefits:
- Intuitive one step, two-line connection & disconnection
- Ensures correct directional flow
- Attractive, high-quality appearance and configuration flexibility
- Fewer moving parts, shorter assemblies, faster installations
Main Specifications:
- Material: Acetal
- Material Finish: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: In-Line
- Temperature Range: 32°F - 180°F (0°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Valved
- Valve Spring: 316 Stainless Steel
- Body Type: Body
- Bag Qty: 25
Click to download : CPC-DPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004774 |
| Manufacturer Code | DPCD17006 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
