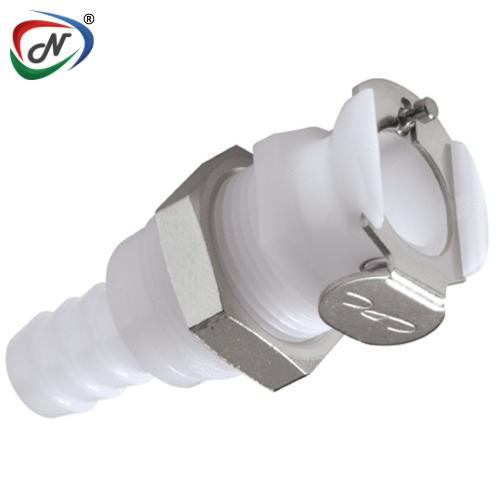

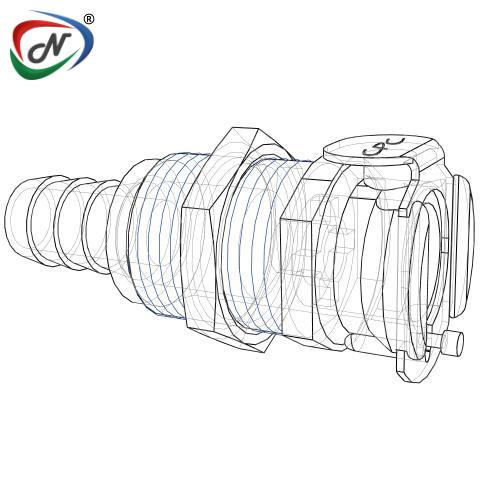

PLCD16006 3/8 Hose Barb Valved Panel Mount Acetal Coupling Body
#NSSP003207
Product Description
PLCD16006 3/8 Hose Barb Valved Panel Mount Acetal Coupling Body
MAIN FEATURES:
- Colder Thumb Latch
- Integral Termination
- Clicks when connected
- Compatible
MAIN BENEFITS:
- One-hand connection & disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series Couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range:
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 25
COUPLING BODY - ACETAL
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ | 9.5mm ID |
STRAIGHT THRU | PLC16006 |
SHUTOFF | PLCD16006 |
A (Height/Diameter) | 0.88 (22.4) |
B (Total Length) | 1.95 (49.5) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC PLC SERIES CATALOGUEMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003207 |
| Manufacturer Code | PLCD16006 |
| HSN Code | 8481805090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.015kg |
| Type | Quick Fittings |
