PM012216E ohn Guest Black Acetal Straight Adaptor (BSP Thread) 22mm × 3/4"

#NSSP004847

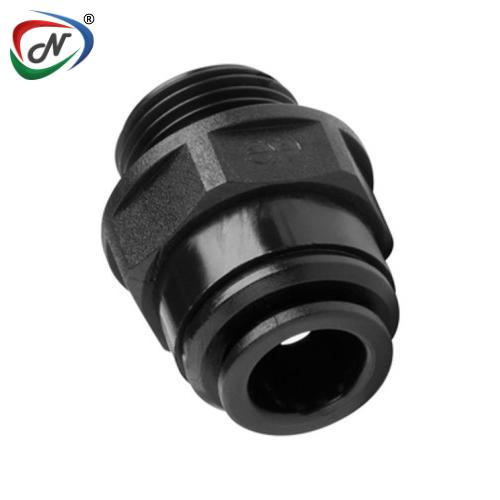

PM012216E John Guest Black Acetal Straight Adaptor (BSP Thread) 22mm × 3/4"

The fitting is constructed from a robust acetal copolymer and features a nitrile O-ring.
It provides an airtight seal with excellent flow properties.
The connection is achieved through a quick push-fit mechanism and can be easily disassembled without the need for tools.
A secure collet cover is in place to prevent any unintended disconnections.
This fitting is appropriate for air and pneumatic piping systems operating at pressures up to 10 bar.
It is particularly well-suited for applications involving air, inert gases, and vacuum.
Additionally, it is a food-grade fitting that is safe for use with potable liquids and is compatible with both soft metal and plastic pipes or tubing.

Main Specifications:

SKU	Description	Pipe OD mm	BSP "	Quantity per bag	Quantity per box	Accreditations
PM011213E	Straight Adaptor (BSP thread) 12mm × 3/8"	12	3/8	10	150	BSI
PM011214E	Straight Adaptor (BSP thread) 12mm × 1/2"	12	1/2	10	150	BSI
PM011513E	Straight Adaptor (BSP thread) 15mm × 3/8"	15	3/8	10	150	BSI
PM011514E	Straight Adaptor (BSP thread) 15mm × 1/2"	15	1/2	10	150	BSI
PM011516E	Straight Adaptor (BSP thread) 15mm × 3/4"	15	3/4	10	150	BSI
PM011814E	Straight Adaptor (BSP thread) 18mm × 1/2"	18	1/2	–	70	BSI
PM012216E	Straight Adaptor (BSP thread) 22mm × 3/4"	22	3/4	–	50	BSI
PM012818E	Straight Adaptor (BSP thread) 28mm × 1"	28	1	–	30	BSI
