Electro Magnetic Drive
#NSSP002049
Product Description

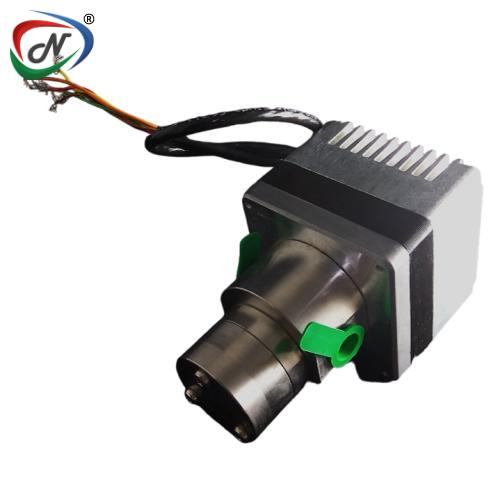

The FG404XD0GT10000 / FG404 Electromagnetic Drive Gear
is part of the FG400 series and is designed for heavy-duty applications
Main Features:
- 24V Brushless DC Drive Motor: This motor is in a
rotor-less configuration, enhancing reliability and reducing maintenance
- High Precision Mag Drive Gear Pump: The pump is
designed to handle a wide range of liquids with high safety and efficiency
- Extended Service Life: Fewer moving parts and
excellent system balance contribute to a longer service life compared to
traditional pump-motor units
- Leak-Free Operation: The integration of the pump,
motor, and variable speed controller provides an electromagnetically coupled,
leak-free unit
- Versatility: The unit is highly versatile and can
handle demanding applications
- Compact and Quiet: The design ensures a compact size and
quiet operation
Main Specifications:
- Flow
Rate (Min): External gear pump
- Flow
Rate (Max): 30 l/h
- Differential
Pressure (Max): 210 l/h
- Static
Pressure (Max): 12 bar
- Technology: 20
bars
|
FG 400 SERIES
PUMP-MOTOR UNIT | |
|
TECHNOLOGY |
External gear pumps |
|
FLOW RATE |
30 l/h |
|
FLOW RATE |
210 l/h |
|
DIFFERENTIAL |
12 bar |
|
STATIC PRESSURE |
20 bar |
Click to download : Magnet drive gear pump-motor Click to download : Instruction Manual Click to download : Datasheet Click to download : Declaration of Conformity Click to download : NSF certificateBeer Industry
Additional Information
| NESPL Code | NSSP002049 |
| Manufacturer Code | FG404XD0GT10000 |
| HSN Code | 84138190 |
| Manufacturer | Fluid-o-Tech |
| Voltage | 24V DC |
| Model | FG Series |
| Power | 50 W |
| Weight | AISI 316L 910g/2lb - PPS 550g/1.2lb |
| Type | Pump |
