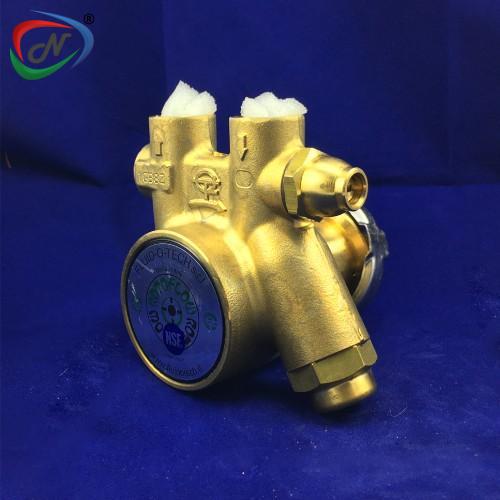

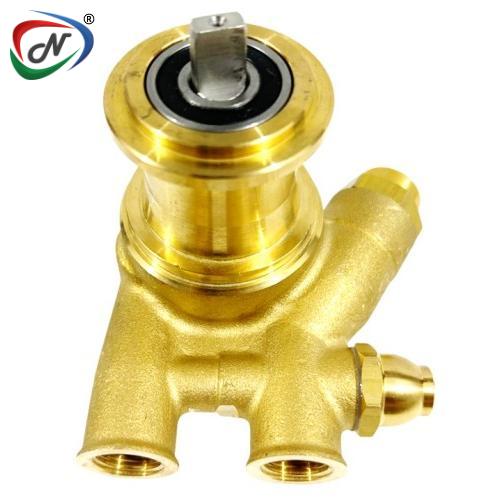

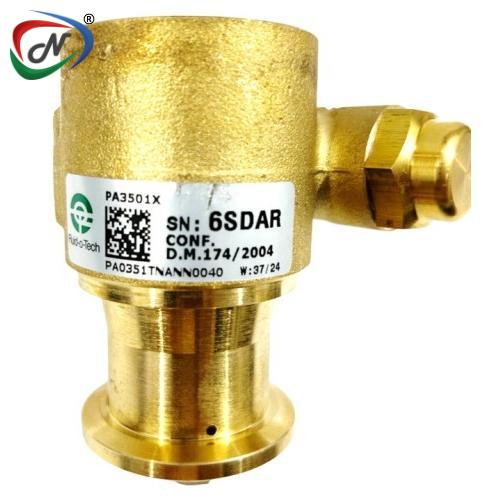

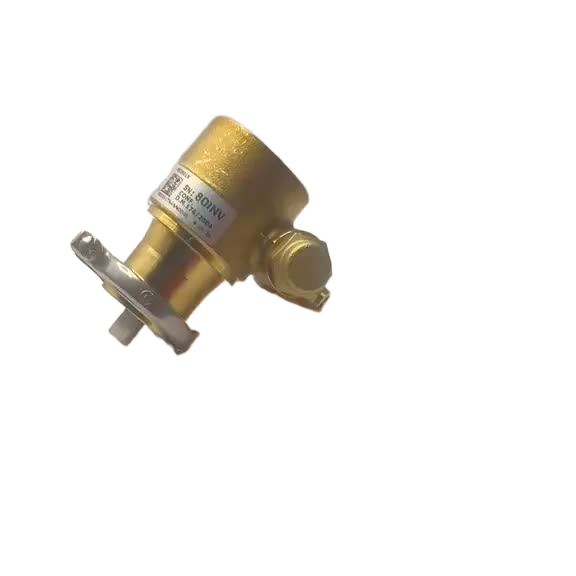

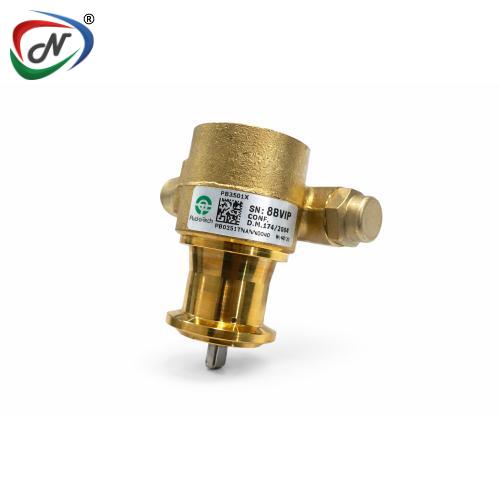

PA3501X ROTARY VANE PUMP

#NSSP001096

Product Description

PA0351TNANN0040 PA3501X-ROTARY VANE PUMP

MAIN FEATURES:

  • BRASS HOUSING AND ROTOR
  • PUMPING CHAMBER AND VANES OF GRAPHITIC CARBON
  • BUILT-IN STRAINER
  • BYPASS INSERT CLASS WATER PUMP
  • INLET AND OUTLET PORTS ARE â…œ” GAS OR NPT THREADED
  • CONNECT TO DIRECT COUPLING MOTORS WITH A STAINLESS-STEEL CLAMP
  • MAXIMUM OPERATIVE TEMPERATURE IS 158 F
  • DIRECT OR MAGNETIC DRIVE
  • FLOW RATES OF WIDE RANGE

MAIN APPLICATIONS:

  • BEVERAGE VENDING MACHINES
  • POST-MIX DRINK DISPENSERS
  • ESPRESSO COFFEE MACHINES
  • WATER TREATMENT
  • WATER DISPENSERS
  • COOLING SYSTEMS

NESPL is An Exclusive Distributor of Fluid-o-Tech Pumps and Parts in India.

NESPL has been associated with Fluid-o-Tech Italy for almost a decade now. We can provide High Quality Pumps & Accessories, Anywhere in India at the Best Prices as well.

PA 300 SERIES VANE PUMPS

TECHNOLOGY

Rotary vane pumps

FLOW RATE
(MIN)

100 l/h

FLOW RATE
(MAX)

450 l/h

DIFFERENTIAL
PRESSURE (MAX)

16 bar

STATIC PRESSURE
(MAX)

20 bar



Read More

Soft Drink Industry

Water Purification

Various Industry Products

Additional Information

NESPL Code NSSP001096
Manufacturer Code PA0351TNANN0040 - PA3501X
HSN Code 84136090
Manufacturer Fluid-o-Tech
Model PA3501X
Weight 1.300 kg (2.9 lb)
Type Pump
