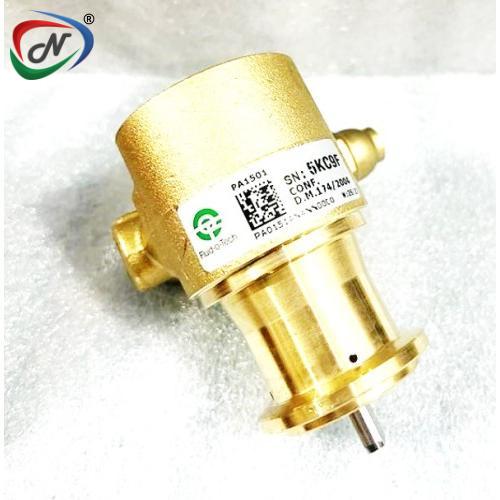

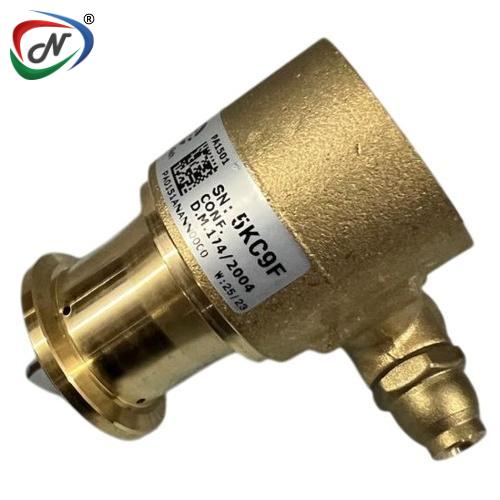

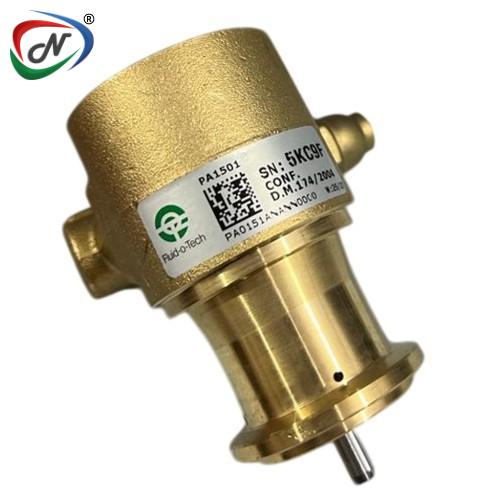

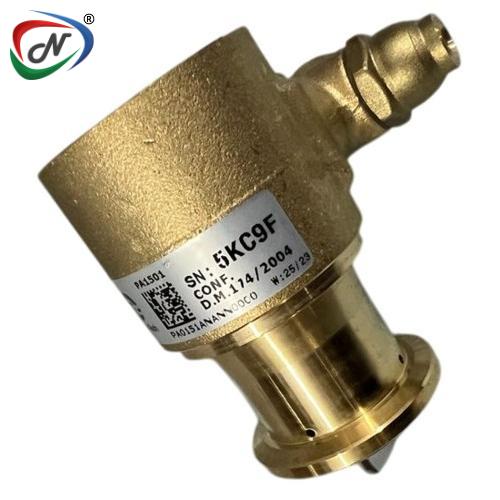

PA0151ANANN0000 PA1501 -Rotary vane pump

PA0151ANANN0000 PA1501 -Rotary vane pump

• Brass housing clamp mount 150 l/h at 1450 rpm;
• Bypass; open valve in plastic;
• 3/8"NPT ports parallel shaft

Main Features:

• NSF and WRAS listed
• Internal relief valve available
• Long service life
• Self priming
• Quiet operation
• Pulsation free flow

Main Applications

• Post-mix drink dispensers
• Cooling and booster systems
• Fuel injection systems
• Reverse osmosis systems
• Ultra-filtration systems
• Water dispensing systems

Its robust construction and efficient performance make it ideal for environments requiring consistent and reliable fluid transfer.

Main Specifications:

• Flow Rate: Up to 64 GPH (gallons per hour) at 1450 RPM.
• Maximum Operating Pressure: 290 PSI.
• Maximum Operating Temperature: 158°F (70°C).
• Port Size: 3/8" NPTF (Female National Pipe Thread Fuel).
• Mounting Type: Clamp mount for easy installation.
• Materials:
• Housing: Lead-free brass for durability and corrosion resistance.
• Vanes: Carbon graphite for smooth operation.
• Shaft: Stainless steel for strength and longevity.
• Seals: Buna-N elastomer, NSF approved.
• Relief Valve: Integrated to protect against overpressure situations.

The Fluid-o-Tech PA0151ANANN0000 and PA1501 are high-performance rotary vane pumps designed for various fluid transfer applications. These pumps are known for their reliability and efficiency in handling moderate to aggressive liquids.
