PUMP-PA901 MOUNTED PA901ANAN000 Rotary vane pumps

#NSSP001212

Product Description

PUMP-PA901 MOUNTED PA0901ANANN0000 PUMPS (WATER PUMP FOR COMMERCIAL RO SYSTEM)

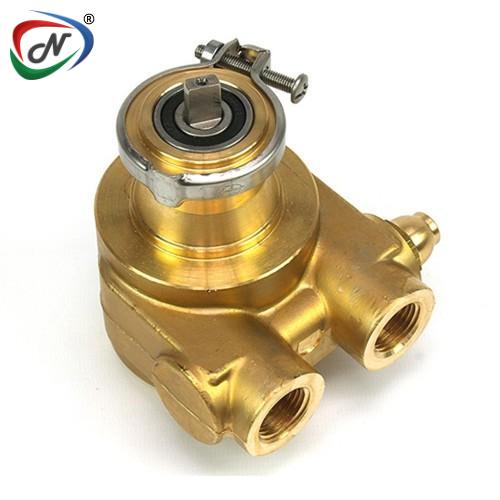

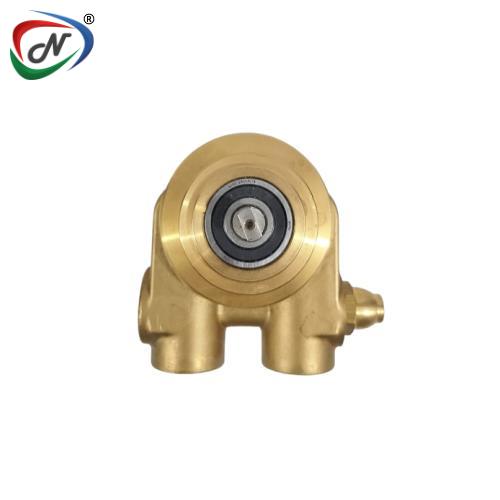

The Fluid-o-Tech PA901 is a rotary vane pump that can deliver up to 290 gallons per hour. It features an NSF approved Buna-N seal and is equipped with a standard double flat shaft. The pump housing is made of lead-free brass and includes a band clamp mount as well as a pressure bypass.

Main Specifications:

Flow rate: 290 gallons per hour
Material: lead-free brass housing, graphite chamber
1/2" NPT ports
Clamp Mount: 4.2 lbs. (1.9kg)
Max Static Pressure: 290 PSI
Max Operating Temperature: 158°F
Max Speed: 1725 RPM
Flow Rate (Min): 550 l/h,
Flow Rate (Max): 1050 l/h,
Differential Pressure (Max): 16 bar,
Static Pressure (Max): 20 bar

Main Applications:

Post-mix drink dispensers
Cooling & booster systems
Fuel injection systems
Reverse osmosis systems
Ultra-filtration systems
Water dispensing systems

Click to download : PA901 Rotary vane pumps

Various Industry Products

Additional Information

NESPL Code	NSSP001212
Manufacturer Code	PA0901ANANN0000
HSN Code	84138100
Manufacturer	Fluid-o-Tech
Model	PA901
Power	Rotary Vane Pumps, Fluid-o-Tech rotary vane pump, rotary vane fluid pumps, positive displacement vane pumps, beverage rotary vane pump, Fluid-o-Tech gear pump, stainless steel gear pump, precision gear pump, Fluid-o-Tech magnetic drive pump, mag drive liq
Weight	Clamp mount 1.9 kg (4.2 lb)
Type	Brix Cup
