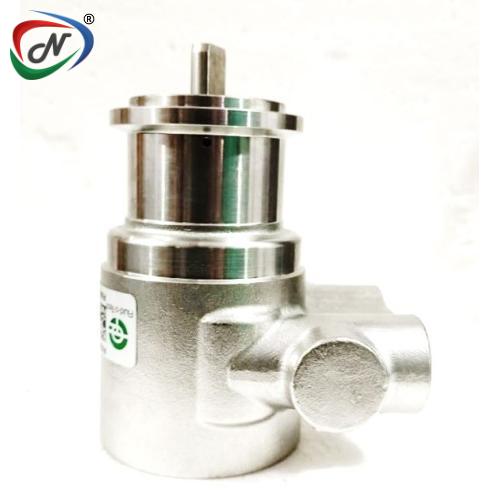

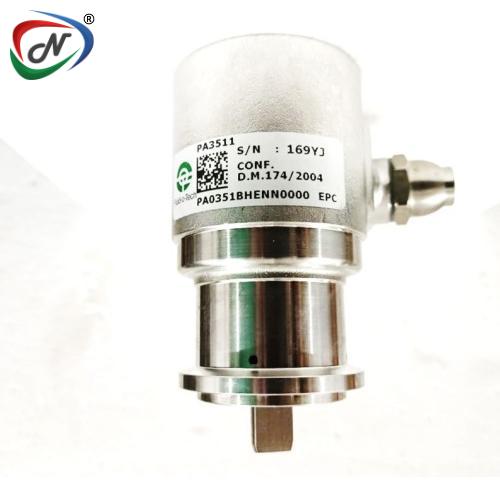

PA0351 ROTARY VANE PUMP

#NSSP001092

Product Description

PA0351BHENN0000 PA3511-ROTARY VANE PUMP

MAIN APPLICATIONS

  • SODA CIRCULATION
  • COOLING SYSTEMS
  •  BOOSTER SYSTEMS
  • WATER TREATMENT

MAIN FEATURES:

  • A WIDE RANGE OF FLOW RATES
  • DIRECT OR MAGNETIC DRIVE
  • THE HOUSING AND THE ROTOR ARE MADE OF STAINLESS STEEL AISI 303
  • THE PUMPING CHAMBER AND THE VANES ARE MADE OF GRAPHITIC CARBON
  • INLET AND OUTLET PORTS ARE â…œ” GAS OR NPT THREADED
  • CAN BE CONNECTED TO DIRECT COUPLING MOTORS WITH A STAINLESS STEEL CLAMP
  • THE MAXIMUM OPERATIVE TEMPERATURE IS 158 F
PA 300 SERIES VANE PUMPS

TECHNOLOGY

Rotary Vane Pumps

FLOW RATE
(MIN)

100 l/h

FLOW RATE
(MAX)

450 l/h

DIFFERENTIAL
PRESSURE (MAX)

16 bar

STATIC PRESSURE
(MAX)

20 bar



NESPL is An Exclusive Distributor of Fluid-o-Tech Pumps and Parts in India.

NESPL has been associated with Fluid-o-Tech Italy for almost a decade now. We can provide High Quality Pumps & Accessories, FG409 Electromagnetic Drive Gear Pump, TP304670B040000 Peristaltic Pump for Liquor, PA03511 Rotary Vane Pump, DGD09CACA020100 - Gear Pump, FG313 Electromagnetic Gear Pump – Motor, TMCF01S-07S Circulation Pump, PA301 Rotary Vane Pump, MA0204 Pump Brass Housing,  MA074 Rotary Vane Pump, PA0711 Fluid-O-Tech Rotary Vane Pump, Solenoid Pumps, Magnet Drive Gear Pump, Duplex Solenoid Pump, MG409XD0CT00000 Electromagnetic Pump, & Parts, Anywhere in India at the Best Prices as well.

Read More

Soft Drink Industry

Additional Information

NESPL Code NSSP001092
Manufacturer Code PA0351
HSN Code 84136090
Manufacturer Fluid-o-Tech
Model PA0351
Weight 0.960 Kg
Type Pump

Related Products

 TMCF07S Group Motor
TMCF07S Group Motor NESPL Code - #NSSP002134
 PA611 SS Rotary Vane Pump
PA611 SS Rotary Vane Pump NESPL Code - #NSSP001591
 PA1001BNENN0000 Pump Stainless Steel Housing
PA1001BNENN0000 Pump Stainless Steel Housing NESPL Code - #NSSP001592
 TMSS101 SS Magnet driven rotary vane pump
TMSS101 SS Magnet driven rotary vane pump NESPL Code - #NSSP002714

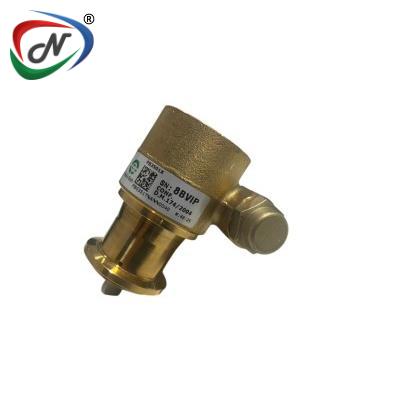

 PA3501X ROTARY VANE PUMP
