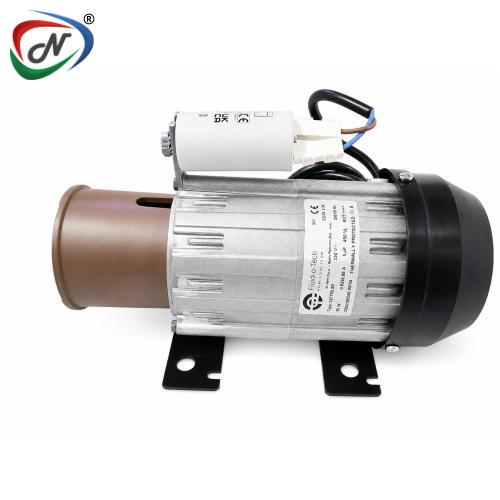

TMCF07S Group Motor

#NSSP002134

Product Description

TMCF01-07S Magnetic drive Rotary Vane Pumps

RPM C0155.09-90W vent.(6901428)

DRIVER UNIT FOR ROTARY VANE PUMPS TM Series

RPM 230V 50/60 Hz 90W 2P FAN COOLED

MAIN APPLICATIONS

  • ESPRESSO COFFEE MACHINES
  • SODA CIRCULATION
  • REVERSE OSMOSIS
  •  SOLAR HEATING SYSTEMS
  • COOLING SYSTEMS
  • REFRIGERATING GAS TRANSFER

 COMPARED TO CONVENTIONAL COUPLING, THE MAGNET DRIVE HAS SEVERAL ADVANTAGES:

  • LONGER SERVICE LIFE
  • NO LEAKS OR CONTAMINATION
  • NOISELESS OPERATION
  • NO CONTACT BETWEEN PUMP AND MOTOR SHAFT
  • HIGHER EFFICENCY

• MAX SYSTEM PRESSURE: 18 BAR (260 PSI) • MAX TEMPERATURE: 70 °C (158 F)



TECHNOLOGY

FLOW RATE(MIN)

FLOW RATE (MAX)

DIFFERENTIAL PRESSURE(MAX)

STATIC PRESSURE(MAX)

TMCF01-07S SERIES DRIVES

Rotary vane pump

100 l/h

500 l/h

14 bar

20 bar



NESPL is An Exclusive Distributor of Fluid-o-Tech Pumps and Parts in India.

NESPL has been associated with Fluid-o-Tech Italy for almost a decade now. We can provide High Quality Pumps & Accessories, Rotary vane pump-motor HA series Fluid O Tech & Parts, Anywhere in India at the Best Prices as well.

Read More

Soft Drink Industry

Coffee Industry

Water Purification

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP002134
Manufacturer Code TMCF07S
HSN Code 85014090
Manufacturer Fluid-o-Tech
Voltage 230V 50/60 Hz
Model TMCF07S
Power 90W
Weight 5.700 Kg
Type Motors
