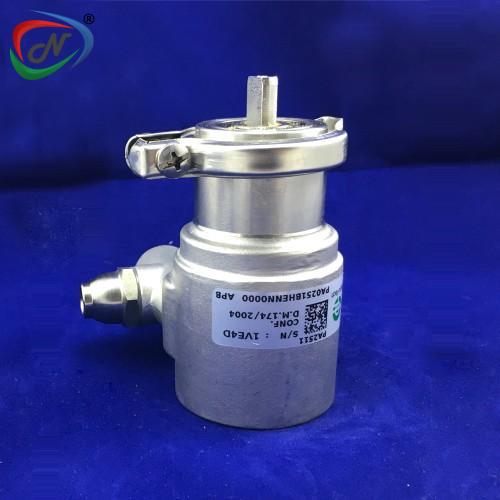

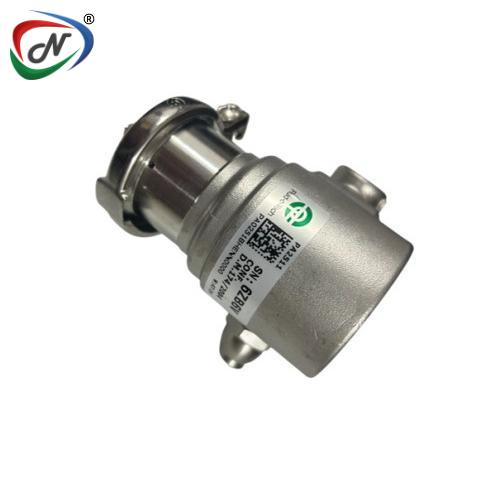

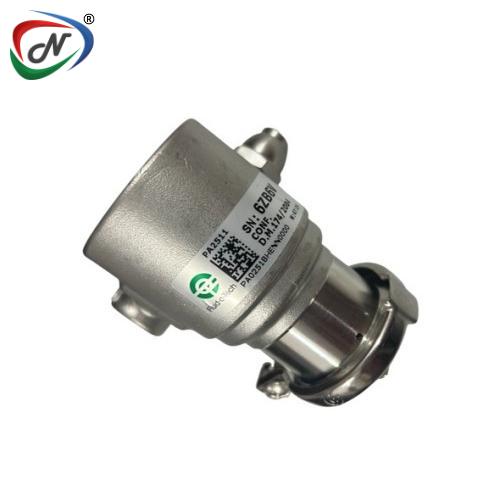

PA0251 Rotary Vane Pump
(In Stock)

#NSSP002375

Product Description

PA0211BHENN0000 - PA211 Rotary Vane Pump: 250 L/H at 1450 Rpm Stainless Steel Housing -Clamp Lounge The rotary vane pumps, manufactured by Fluid-o-Tech® and sold worldwide under the trademark Rotoflow®, are volumetric pumps designed for pumping water and aggressive liquids with low flow at high pressure. Technical features and manufacturing characteristics The housing and the rotor are in stainless steel AISI 303, while the pumping chamber and the vanes are in carbon graphite. Inlet and outlet ports are 3/8” GAS or NPT threaded. A built-in adjustable relief valve to protect the pump and the system from unexpected pressure spikes is also available upon request. The pump can be connected to direct coupling motors with a stainless steel clamp or to M71 and M80 UNELMEC or NEMA 56C frame motors with the Fluid-o-Tech® coupling and adapter set. Maximum operative temperature: 70 °C (158 F). Available upon request: • Viton®/EPDM seals • Built-in relief valve • Flange mount # MAIN APPLICATION ♦SODA CIRCULATION ♦COOLING SYSTEMS ♦BOOSTER SYSTEMS ♦WATER TREATMENT

Additional Information

NESPL Code NSSP002375
Manufacturer Code PA0211BHENN0000
HSN Code 84138190
Manufacturer Fluid-o-Tech
Voltage N/A
Model PA2501
Power 1725 rpm
Weight 0.910 Kg
Type Pump
