STS28 SUPERSEAL PIPE INSERT - 28 MM John Guest

#NSSP007884

Product Description

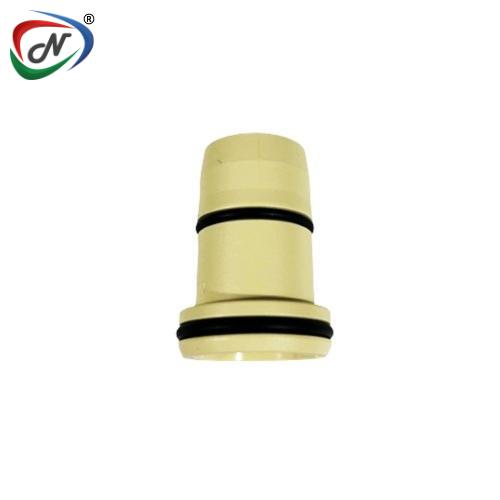

STS28 SUPERSEAL PIPE INSERT - 28 MM John Guest

Establishes a firm connection and improves the dual action seal when attaching a Speedfit pipe to a Speedfit fitting.

It is essential to utilize a JG Speedfit superseal pipe insert when connecting a Speedfit pipe to a Speedfit push-fit fitting. These inserts are crucial for providing additional support to the pipework, ensuring that the pipe ends remain perfectly round and reducing any deformation that may occur during cutting.

The JG Speedfit superseal pipe insert is equipped with dual O-Rings, offering superior sealing security compared to a standard insert. The first O-Ring is located on the stem that is inserted into the pipe, preventing water from within the pipe from leaking between the inner wall of the pipe and the outer surface of the insert. The second O-Ring is positioned at the end of the insert, sealing within the push-fit fitting and creating a barrier between the main pipe and the push-fit fitting. When superseal inserts are utilized with Speedfit push-fit fittings, a multi-seal is established, as all push-fit fittings also feature a primary O-Ring seal.

Main Features:

Two additional O-Rings enhance sealing (the 10mm version includes only one O-Ring)
Preserves the structural integrity of the pipe connection
Increases the rigidity of the pipe when subjected to side loads
Compatible with hot and cold water as well as central heating systems
Designed exclusively for Speedfit pipes and fittings.

Main Specifications:

SKU	Description	Size mm	Quantity per bag	Quantity per box	Accreditations
STS10	JG Speedfit Superseal Pipe Insert 10mm	10	50	1000 (small) & 12500 (large)	BSI WRAS KIWA REG 4 DVGW
STS15	JG Speedfit Superseal Pipe Insert 15mm	15	50	500 (small) & 5000 (large)	BSI WRAS KIWA REG 4 DVGW
STS22	JG Speedfit Superseal Pipe Insert 22mm	22	25	250 (small) & 2000 (large)	BSI WRAS
STS28	JG Speedfit Superseal Pipe Insert 28mm	28	10	100 (small) & 1000 (large)	BSI WRAS
