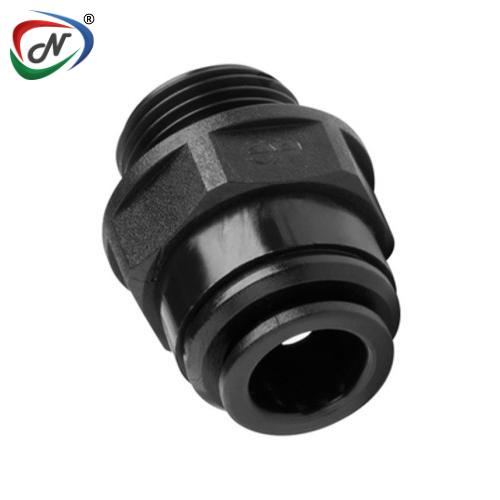

PM012818E 28MM TUBE OD X 1" BSP THREAD STRAIGHT ADAPTOR

#NSSP008317

Product Description

PM012818E 28MM TUBE OD X 1" BSP THREAD STRAIGHT ADAPTOR

Transforms metric measurements into a BSP type thread connection.

The John Guest straight adaptor (BSP thread) is a push-fit fitting designed for connecting metric pipes to BSP type threads. It is quick and easy to install, allowing John Guest Air and Pneumatics to create an immediate connection and an airtight seal without requiring tools, hot works, or sealing agents. Air piping systems can be established and installed 50% faster than conventional methods.

The innovative collet locking mechanism securely and firmly holds the pipe in position without causing deformation or impeding flow. Additionally, the fittings are completely demountable, which minimizes system downtime during maintenance and facilitates quick and easy modifications or extensions of systems.

Main Features:

Robust acetal copolymer fitting equipped with a nitrile O-Ring.
Sealed connection offering excellent flow properties.
Immediate push-fit connection that can be disassembled without the need for tools.
Reliable collet cover that safeguards against unintentional disconnection.
Appropriate for air and pneumatic piping systems operating at pressures up to 10 bar.
Perfect for applications involving air, inert gases, and vacuum.
Food-grade fitting that is safe for use with drinking liquids.
Compatible with both soft metal and plastic pipes or tubing.

Main Specifications:

SKU	Description	Pipe OD mm	BSP ″	Quantity per bag	Quantity per box
PM011514E	Straight Adaptor (BSP thread) 15mm × 1⁄2″	15	1⁄2	10	150
PM011516E	Straight Adaptor (BSP thread) 15mm × 3⁄4″	15	3⁄4	10	150
PM011814E	Straight Adaptor (BSP thread) 18mm × 1⁄2″	18	1⁄2	–	70
PM012216E	Straight Adaptor (BSP thread) 22mm × 3⁄4″	22	3⁄4	–	50
PM012818E	Straight Adaptor (BSP thread) 28mm × 1″	28	1	–	30
