PM0418E 18MM STRAIGHT CONNECTOR

#NSSP008324

Product Description

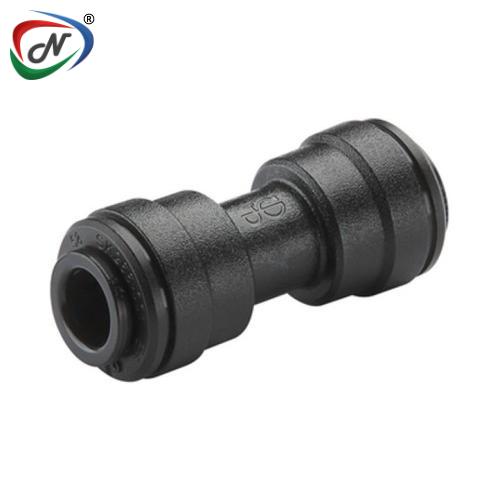

PM0418E 18MM STRAIGHT CONNECTOR

Effortlessly and swiftly connects two pipes of the same size.

The John Guest straight connector push-fit fitting links two pipes of equal dimensions. It is quick and easy to install, allowing John Guest Air and Pneumatics to create an immediate connection and an airtight seal without requiring tools, hot work, or sealing agents. Air piping systems can be established and installed 50% faster than conventional methods.

The distinctive collet locking mechanism securely and firmly retains the pipe in position without causing deformation or impeding flow. Additionally, the fittings are completely demountable, which minimizes system downtime during maintenance and facilitates quick and easy modifications or expansions of systems.

Main Features:

· Robust acetal copolymer fitting equipped with a nitrile O-Ring.

· Sealed connection offering excellent flow properties.

· Immediate push-fit connection that can be disassembled without the need for tools.

· Reliable collets cover that safeguards against unintentional disconnection.

· Appropriate for air and pneumatic piping systems operating at pressures up to 10 bar.

· Perfect for applications involving air, inert gases, and vacuum.

· Food-grade fitting that is safe for use with drinking liquids.

· Compatible with both soft metal and plastic pipes or tubing.

Main Specifications:

SKU	Description	Pipe OD mm	Quantity per bag	Quantity per box
PM0412E	Straight Connector 12mm	12	10	100
PM0415E	Straight Connector 15mm	15	10	100
PM0418E	Straight Connector 18mm	18	10	50
PM0422E	Straight Connector 22mm	22	10	50
PM0428E	Straight Connector 28mm	28	–	25
