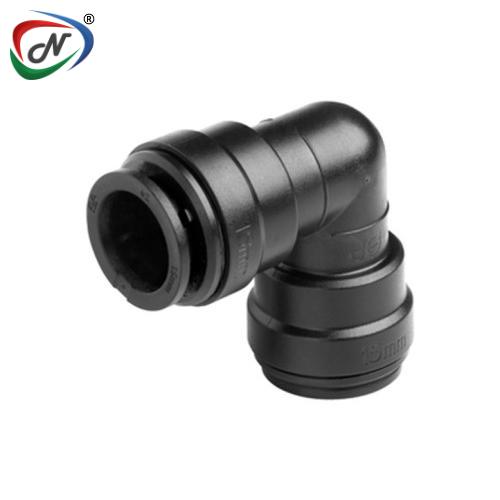

PM0328E EQUAL ELBOW 28MM

#NSSP008323

Product Description

PM0328E EQUAL ELBOW 28MM

Effortlessly and swiftly connects two pipes of the same size to create a 90° angle.

The John Guest equal elbow push-fit fitting connects two pipes of identical dimensions to produce a 90° bend. It is fast and straightforward to install, allowing John Guest Air and Pneumatics to establish an immediate connection and an airtight seal without requiring tools, hot works, or sealing agents. Air piping systems can be set up and installed 50% faster than conventional methods.

The innovative collet locking mechanism securely and firmly holds the pipe in position without causing deformation or impeding flow. Additionally, the fittings are completely demountable, which minimizes system downtime during maintenance and facilitates quick and easy modifications or expansions of systems.

Main Features:

Robust acetal copolymer fitting equipped with a nitrile O-Ring.
Sealed connection offering excellent flow properties.
Immediate push-fit connection that can be disassembled without the need for tools.
Reliable collet cover that safeguards against unintentional disconnection.
Appropriate for air and pneumatic piping systems operating at pressures up to 10 bar.
Perfect for applications involving air, inert gases, and vacuum.
Food-grade fitting that is safe for use with drinking liquids.
Compatible with both soft metal and plastic pipes or tubing.

Main Specifications:

SKU	Description	Pipe OD mm	Quantity per bag	Quantity per box
PM0312E	Equal Elbow 12mm	12	10	100
PM0315E	Equal Elbow 15mm	15	10	50
PM0318E	Equal Elbow 18mm	18	5	50
PM0322E	Equal Elbow 22mm	22	5	30
PM0328E	Equal Elbow 28mm	28	–	20
