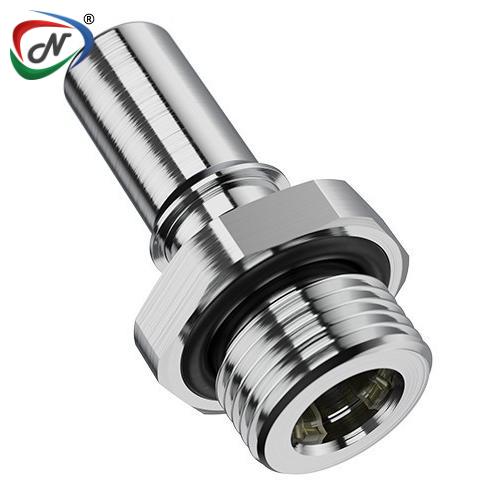

LQ4D47006REDV G3/8 Valved Insert - Red, FKM Seal
#NSSP006418
Product Description
LQ4D47006REDV G3/8 Valved Insert - Red, FKM Seal
Main Features:
- Non-spill design
- Redundant sealing when connected
- Color-coding
- No seal friction in connected state
- Enhanced latch design
- Lower, ergonomic profile
Main Benefits:
- Disconnect under pressure with no spills
- Extra protection from leaks
- Instant visual difference in cooling lines
- Ultra-reliable protection from drips at disconnect even after long periods in connected state
- Easy to see orientation on manifolds and tubing
- Meets size requirements for space-constrained electronics
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Metallic with warm red
- Mounting Option: Thread
- Temperature Range: 0°F - 240°F (-17°C - 115°C)
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Options: Valved
- Body Type: Inserts
- Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage: <0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect rated at 120 psi; <0.025 cc per connect
- Bag Qty: 10
Click to download : CPC-Everis-LQ4-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006418 |
| Manufacturer Code | LQ4D47006REDV |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
