LQ4D17004LBLU 1/4 Locking HB Valved In-Line Body - Blue
#NSSP006253
Product Description

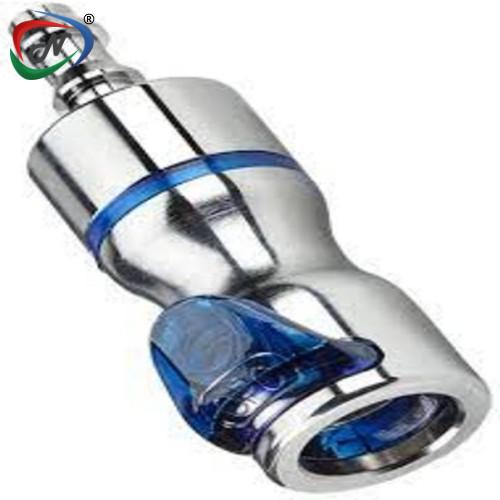

LQ4D17004LBLU 1/4 Locking HB Valved In-Line Body - Blue
Main Specifications:
- Material: Brass
- Material
Finish: Chrome
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: Metallic
with cool blue
- Mounting
Option: In-Line
- Temperature
Range: 0°F - 240°F (-17°C - 115°C)
- Seal
Options: EPDM
- Valve
Spring: Stainless Steel
- Valve
Option: Valved
- Body
Type: Bodies
- Shipping/Storage
Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage:
<0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect
rated at 120 psi; <0.025 cc per connect
- Bag Qty: 10
Main Features:
- Non-spill
design
- Redundant
sealing when connected
- Color-coding
- No
seal friction in connected state
- Enhanced
latch design
- Lower,
ergonomic profile
Main Benefits:
- Disconnect
under pressure with no spills
- Extra
protection from leaks
- Instant
visual difference in cooling lines
- Ultra-reliable
protection from drips at disconnect even after long periods in connected
state
- Easy
to see orientation on manifolds and tubing
- Meets size requirements for space-constrained electronics
Click to download : CPC-Everis-LQ4-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006253 |
| Manufacturer Code | LQ4D17004LBLU |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
Related Products
LQ4D10004BLU 1/4 NPT Valved Body - Blue
NESPL Code - #NSSP006140
LQ4D10004RED 1/4 NPT Valved Body - Red
NESPL Code - #NSSP006142
LQ4D10006BLU 3/8 NPT Valved Body - Blue
NESPL Code - #NSSP006143
LQ4D10006RED 3/8 NPT Valved Body - Red
NESPL Code - #NSSP006144
LQ4D13006BLU 3/8 PTF Valved In-Line Body - Blue
NESPL Code - #NSSP006146
LQ4D13006RED 3/8 PTF Valved In-Line Body - Red
NESPL Code - #NSSP006147
LQ4D17004BLU 1/4 HB Valved In-Line Body - Blue
NESPL Code - #NSSP006148

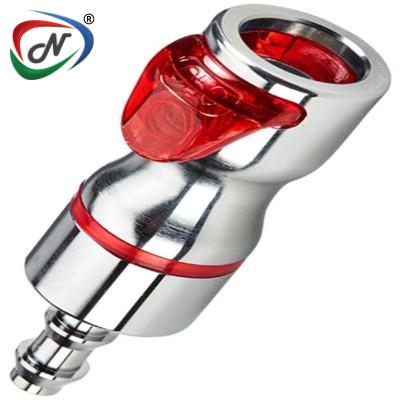

LQ4D17004LRED 1/4 Locking HB Valved In-Line Body - Red
