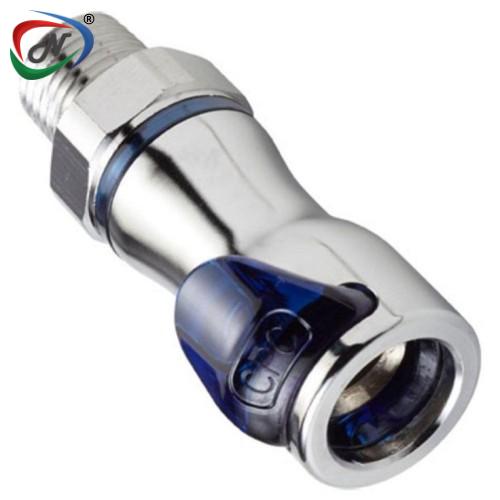

LQ4D10004BLU 1/4 NPT Valved Body - Blue
#NSSP006140
Product Description
LQ4D10004BLU 1/4 NPT Valved Body - Blue
Main Specifications:
- Material: Brass
- Material
Finish: Chrome
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: Metallic
with cool blue
- Mounting
Option: Thread
- Temperature
Range: 0°F - 240°F (-17°C - 115°C)
- Seal
Options: EPDM
- Valve
Spring: Stainless Steel
- Valve
Option: Valved
- Body
Type: Bodies
- Shipping/Storage
Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage:
<0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect
rated at 120 psi; <0.025 cc per connect
- Bag Qty: 10
Main Features:
- Non-spill design
- Redundant sealing when connected
- Color-coding
- No seal friction in connected state
- Enhanced latch design
- Lower, ergonomic profile
Main Benefits:
- Disconnect under pressure with no spills
- Extra protection from leaks
- Instant visual difference in cooling lines
- Ultra-reliable protection from drips at disconnect even
after long periods in connected state
- Easy to see orientation on manifolds and tubing
- Meets size requirements for space-constrained electronics
Click to download : CPC-Everis-LQ4-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006140 |
| Manufacturer Code | LQ4D10004BLU |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
