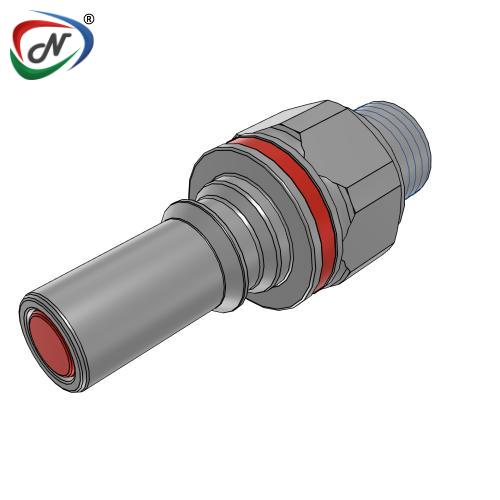

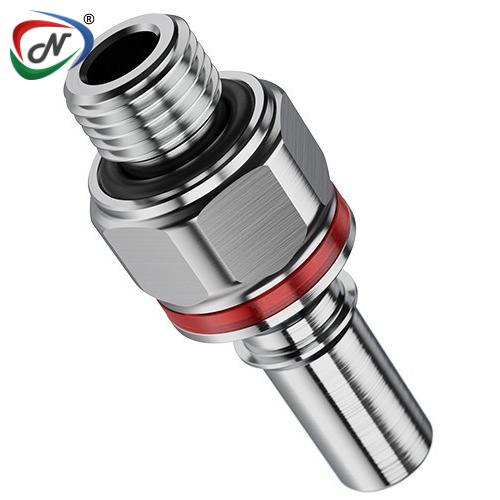

LQ4D47004RED G1/4 Valved Insert - Red
#NSSP006414
Product Description
LQ4D47004RED G1/4 Valved Insert - Red
Main Features:
- Non-spill design
- Redundant sealing when connected
- Color-coding
- No seal friction in connected state
- Enhanced latch design
- Lower, ergonomic profile
Main Benefits:
- Disconnect under pressure with no spills
- Extra protection from leaks
- Instant visual difference in cooling lines
- Ultra-reliable protection from drips at disconnect even after long periods in connected state
- Easy to see orientation on manifolds and tubing
- Meets size requirements for space-constrained electronics
Main Specifications:
- Material:
Brass
- Material
Finish: Chrome
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color:
Metallic with warm red
- Mounting
Option: Thread
- Temperature
Range: 0°F - 240°F (-17°C - 115°C)
- Seal
Options: EPDM
- Valve
Spring: Stainless Steel
- Valve
Options: Valved
- Body
Type: Inserts
- Shipping/Storage
Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage:
<0.025 cc per disconnect rated at 0 psi; <0.055 cc per
disconnect rated at 120 psi; <0.025 cc per connect
- Bag Qty: 10
COUPLING INSERT - Nickel-chrome plated brass
TERMINATION | IN-LINE STRAIGHT THREAD G / BSPP |
TUBING/THREAD SIZE | G1/42 |
HEX | 20mm |
STRAIGHT THRU | LQ4D47004RED |
A (Height/Diameter) | 0.85 (21.6) |
B (Total Length) | 2.13 (54.2) |
C (Connected Length) | 0.67 (17.0) |
*All measurements are in inches (millimetres) unless otherwise noted. All G (BSPP) terminations are compatible with ISO 1179-1 ports.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-Everis-LQ4-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006414 |
| Manufacturer Code | LQ4D47004RED |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
