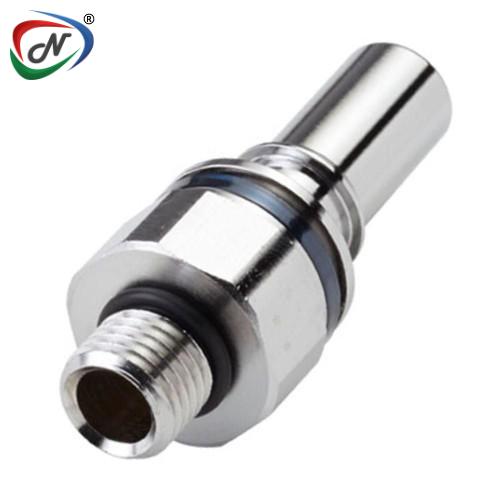

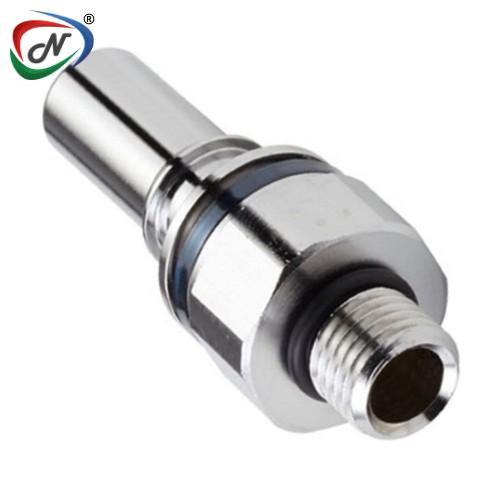

LQ4D46004BLU 1/4 SAE Valved Insert - Blue
#NSSP006404
Product Description
LQ4D46004BLU 1/4 SAE Valved Insert - Blue
Main Specifications:
- Material: Brass
- Material
Finish: Chrome
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: Metallic
with Cool Blue
- Mounting
Option: Thread
- Temperature
Range: 0°F - 240°F (-17°C - 115°C)
- Seal
Options: EPDM
- Valve
Spring: Stainless Steel
- Valve
Option: Valved
- Body
Type: Inserts
- Shipping/Storage
Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage:
<0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect
rated at 120 psi; <0.025 cc per connect
- Bag Qty: 10
Main Features:
- Non-spill
design
- Redundant
sealing when connected
- Color-coding
- No
seal friction in connected state
- Enhanced
latch design
- Lower,
ergonomic profile
Main Benefits:
- Disconnect
under pressure with no spills
- Extra
protection from leaks
- Instant
visual difference in cooling lines
- Ultra-reliable
protection from drips at disconnect even after long periods in connected
state
- Easy
to see orientation on manifolds and tubing
- Meets size requirements for space-constrained electronics
TERMINATION | IN-LINE STRAIGHT THREAD SAE |
TUBING/THREAD SIZE | 1/4 SAE-4: 7/16-20 |
SHUTOFF | LQ4D46004BLU |
HEX | 13/16" |
A(Height/Diameter) | 0.88 (22.4) |
B (Total Length) | 2.05 (52.2) |
C(Connected length) | 0.63 (16.0) |
Click to download : CPC-Everis-LQ4-Spec-Sheet Click to download : LQ4D46004BLU Everis Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006404 |
| Manufacturer Code | LQ4D46004BLU |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
