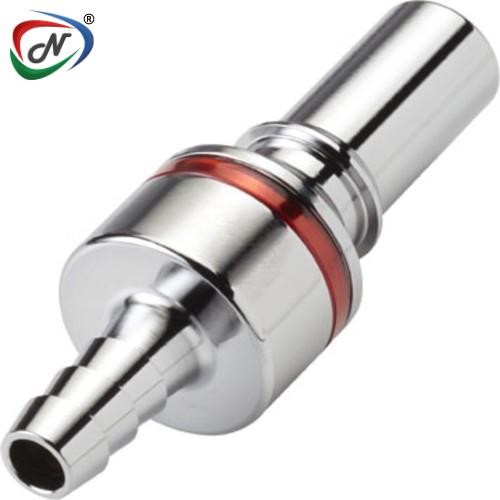

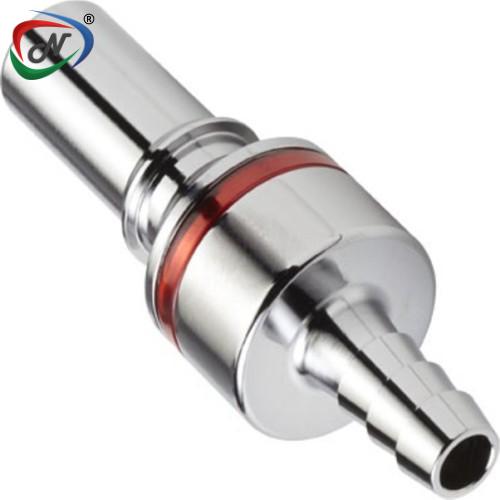

LQ4D22004RED Everis 1/4 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red
#NSSP006316
Product Description
LQ4D22004RED
Everis 1/4 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red
Main Features:
- Non-Spill Design
- Redundant Multi-Lobed Seals
- High Flow Capacity with Low Pressure Drop
- EPDM Or FKM Seals
- Ergonomic Body and Latch Design
- Colour Coding
- Low Profile
- Barbed & Threaded Terminations
Main Benefits:
- Disconnect Under Pressure with no Spills
- Extra Protection from Leaks over an Extended period of Time.
- Efficient, Cost-Effective Cooling System
- Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
- Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
- Instant Visual Identification of Cooling Lines.
- Meets size requirements for Space- Constrained Electronics
- Compatibility with various tubing options including reinforced tubing.
Main Specifications:
- Material: Brass
- Material Finish: Chrome
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Chrome with warm red
- Mounting Option: Thread
- Temperature Range: 0°F - 240°F (-17°C - 115°C)
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage: <0.025 cc per disconnect rated at 0 psi; <0.055 cc per disconnect rated at 120 psi; <0.025 cc per connect
- Weight: .0753 Ounce
- Bag Qty: 10
Click to download : LQ4D22004RED Everis 1/4 Hose Barb Valved In-Line Liquid Cooling Coupling Insert, Warm Red Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006316 |
| Manufacturer Code | LQ4D22004RED |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
