Tygon® ND 100-55 Tubing

#SGN17

Product Description

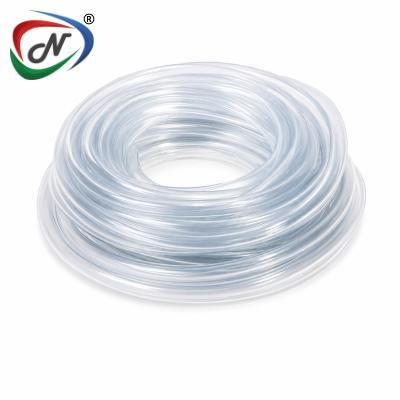

Tygon® ND 100-55 Tubing

Tygon® ND 100-55 tubing complies with the Biological Test for Plastics, Class VI, as outlined in USP <88> (2010; fluid path), rendering it suitable for various medical uses. This tubing provides excellent clarity and strikes a balance between kink resistance and flexibility, making it perfect for fluid transfer and peristaltic pump applications.

* Tygon ND 100-55 tubing ensures stable flow rates for uninterrupted fluid delivery.

Main Features:

Transparent for straightforward visualization of fluid dynamics.
Consistent assessments to guarantee REACH compliance.

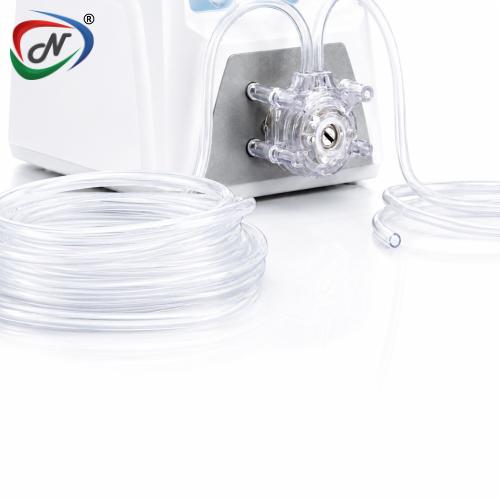

Effective performance of the peristaltic pump (including stability of flow rate).
Excellent resistance to kinking.
The fluid pathway complies with the Biological Test for Plastics, Class VI, as outlined in USP <88> (2010).
The physical characteristics are not significantly affected by the following sterilization techniques: autoclaving (steam at 135°C for 30 minutes), EtO, and gamma radiation.
Tygon ND 100-55 is designed and produced without the deliberate inclusion of animal-derived substances or DEHP.

Main Applications:

Dialysis Equipment

Drug delivery

Respiratory therapy

Main Specifications:

Property	ASTM Method	Value or Rating
Durometer Hardness (Shore A), 15 sec.	D2240	55
Tensile Strength, psi (MPa)	D412	1,725 (11.9)
Ultimate Elongation, %	D412	425
Tear Resistance, lbf/inch (kN/m)	D1004	145 (25,4)
Specific Gravity	D792	1.18
Water Absorption, % 24 hrs at 73°F (23°C)	D570	0.14
Compression Set Under Constant Deflection, % @ 158°F (70°C) for 22 hours	D395 Method B	57
Maximum Recommended Operating Temperature, °F (°C)	-	165 (74)
Brittleness by Impact Temperature, °F (°C)	D746	-53 (-47)
Tensile Stress, @ 100% Elongation, psi (MPa)	D412	596 (4.1)
