Bio-Sil® 1450 Tubing
#SGN02
Product Description

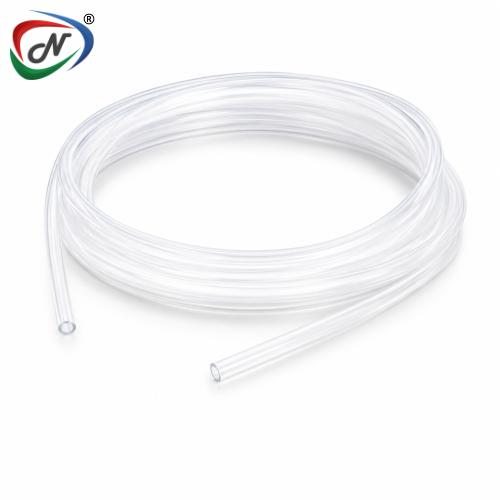

Bio-Sil® 1450 Tubing
Bio-Sil® 1450 is a distinctive silicone formulation cured
with platinum, created by Saint-Gobain. This tubing, with a durometer of 50
(shore A), is extruded and packaged within a certified clean room environment.
Bio-Sil® 1450 tubing has successfully fulfilled the requirements of several ISO
10993 and USP tests, rendering it highly suitable for a variety of medical
applications. The physical characteristics of Bio-Sil® 1450 position it as an
excellent option for drug delivery, enteral nutrition, minimally invasive
surgical procedures, and organ preservation.
Main Features:
- Platinum-cured tubing.
- 50 Shore A hardness.
- Highly flexible.
- Autoclavable, stable in EtO and gamma radiation.
- Temperature range from -80°F (-62°C) to 500°F (260°C).
- The tubing complies with the standards of multiple ISO 10993
and USP tests.
Main Specifications:
|
Property |
ASTM Method |
Value or Rating (metric) |
|
Durometer Hardness, Shore A |
D2240 |
52 |
|
Color |
|
Translucent |
|
Tensile Strength, psi (MPa) |
D412 |
1293 (8.91 MPa) |
|
Ultimate Elongation,
100% |
D412 |
719 |
|
Tear Resistance, Die B, ppi (kN/m) |
D624 |
164 (50.1 kN/m) |
|
Specific Gravity
(g/cm2) |
D792 |
1.14 (g/cm²) |
|
Tensile Modulus at 200% Elongation, psi (MPa) |
D412 |
241 (1.38 Mpa) |
*Unless otherwise noted, all tests were conducted at
room temperature (73°F).
**Values shown were determined on 0.075" thick extruded strips, 0.075" thick molded ASTM plaques, or molded ASTM durometer buttons.
Click to download : Bio-Sil-1450-Technical-Datasheet-369648Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | SGN02 |
| Manufacturer Code | Bio-Sil 1450 |
| Manufacturer | Saint Gobain |
| Type | Medical Tubing |
