Tygon® ND 100-55 Tubing
#SGN01
Product Description

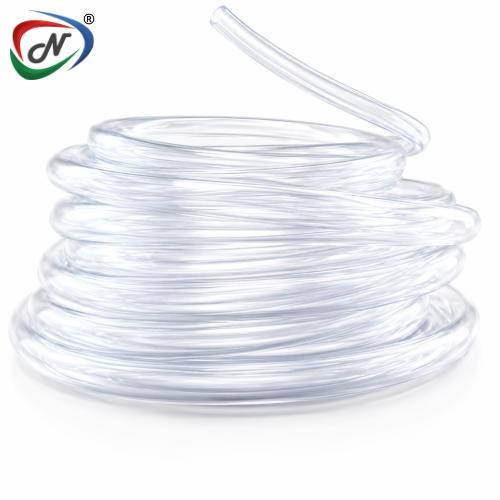

Tygon® ND 100-55 Tubing
Tygon® ND 100-55 tubing complies with the Biological Test
for Plastics, Class VI, as outlined in USP <88> (2010; fluid path),
rendering it highly suitable for various medical applications. This tubing
exhibits excellent clarity and strikes a balance between kink resistance and
flexibility, making it perfect for fluid transfer and peristaltic pump uses. *
Tygon ND 100-55 tubing provides stable flow rate performance for uninterrupted
fluid delivery.
Main Features:
- Easily visualized fluid flow.
- Consistent assessments to guarantee REACH compliance.
- Effective performance of the peristaltic pump (including
stability of flow rate).
- Excellent resistance to kinking.
- The fluid pathway complies with the Biological Test for
Plastics, Class VI, as outlined in USP <88> (2010).
- The physical characteristics remain largely unaffected by
the following sterilization techniques: autoclaving (steam at 135°C for 30
minutes), EtO, and gamma radiation.
- Tygon ND 100-55 is specifically designed and produced
without the deliberate inclusion of animal-derived substances or DEHP.
Main Applications:
- Dialysis
Equipment
- Drug
delivery
- Respiratory
therapy
- Peristaltic
pump tubing applications
Main Specifications:
|
Property |
ASTM Method |
Value or Rating |
|
Durometer Hardness
(Shore A), 15 sec. |
D2240 |
55 |
|
Tensile Strength, psi (MPa) |
D412 |
1,725 (11.9) |
|
Ultimate
Elongation, % |
D412 |
425 |
|
Tear Resistance, lbf/inch (kN/m) |
D1004 |
145 (25,4) |
|
Specific Gravity |
D792 |
1.18 |
|
Water Absorption, % 24 hrs at 73°F (23°C) |
D570 |
0.14 |
|
Compression Set
Under Constant Deflection, % @ 158°F (70°C) for 22 hours |
D395 Method B |
57 |
|
Maximum Recommended Operating Temperature, °F (°C) |
- |
165 (74) |
|
Brittleness by
Impact Temperature, °F (°C) |
D746 |
-53 (-47) |
|
Tensile Stress, @ 100% Elongation, psi (MPa) |
D412 |
596 (4.1) |
*Unless otherwise noted, all tests were conducted at
room temperature (73°F).
**Values shown were determined on 0.075" thick
extruded strips, 0.075" thick molded ASTM plaques, or molded ASTM
durometer buttons.
Click to download : Tygon-ND-100-55-Technical-Datasheet-369663Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | SGN01 |
| Manufacturer | Saint Gobain |
| Type | Medical Tubing |
