PMCD230412 1/4 Hose Barb Valved Elbow Coupling Insert

#NSSP003115

Product Description

PMCD230412

1/4 Hose Barb Valved Elbow Coupling Insert

PMC Series couplings, designed with a 1/8" flow, are suitable for a diverse range of general-purpose applications. Equipped with the CPC thumb latch, the PMC couplings provide a more user-friendly experience compared to traditional ball-and-sleeve connector designs. Their one-handed connection and disconnection capability, along with integral terminations, position the PMC as a preferred option for both usability and manufacturing efficiency.

These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.

Main Features:

Material: Polypropylene
Material Finish: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Color: Almond
Mounting Option: Free Floating
Sterilization: Gamma: Up to 50 kGy irradiation
Temperature Range: 32°F - 160°F (0°C - 71°C)
Seal Options: EPDM
Valve Spring: 316 Stainless Steel
Valve Option: Valved
Body Type: Insert
Bag Qty: 25

Features		Benefits
	Polypropylene		Chemically resistant and gamma sterilizable
	EPDM o-ring		Greater chemical resistance
	Colder thumb latch		One-hand connection and disconnection
	Integral terminations		Fewer leak points, shorter assemblies, faster installations

COUPLING INSERTS - Polypropylene

TERMINATION	ELBOW HOSE BARB
TUBING/THREAD SIZE	1/4" ID
METRIC EQ.	6.4 mm ID
STRAIGHT THRU	PMC230412
SHUTOFF	PMCD230412

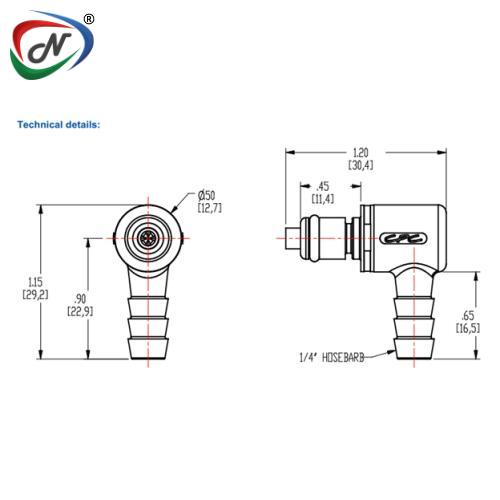

A(Height/Diameter)	0.5 (12.7)
B( Total Length)	1.09/1.21 (27.7/30.7)
D (Elbow Radial Length)	0.9 (22.8)
