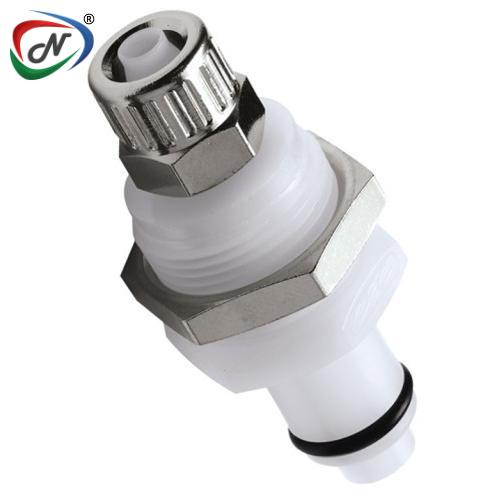

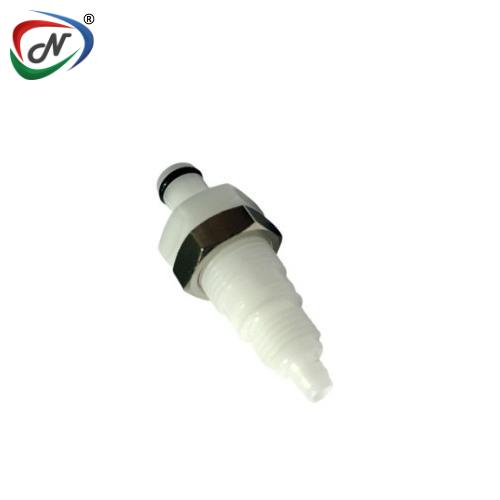

PMC4004 1/4 PTF Non-Valved Panel Mount Coupling Insert
#NSSP003210
Product Description
PMC4004
1/4 PTF Non-Valved Panel Mount Coupling Insert
PMC Series couplings, designed with a 1/8" flow, are suitable for a diverse range of general-purpose applications. Equipped with the CPC thumb latch, the PMC couplings provide a more user-friendly experience compared to traditional ball-and-sleeve connector designs. Their one-handed connection and disconnection capability, along with integral terminations, position the PMC as a preferred option for both usability and manufacturing efficiency.
These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 25
Features
Benefits
Hose barb shroud
Extra protection for the 1/16" hose barb
Integral terminations
Fewer leak points, shorter assemblies, faster installations
Compatible
Mates with PMC12 and MC Series couplings
Clicks when connected
Assurance of a reliable connection
Click to download : CPC-PMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003210 |
| Manufacturer Code | PMC4004 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.011kg |
| Type | Quick Fittings |
