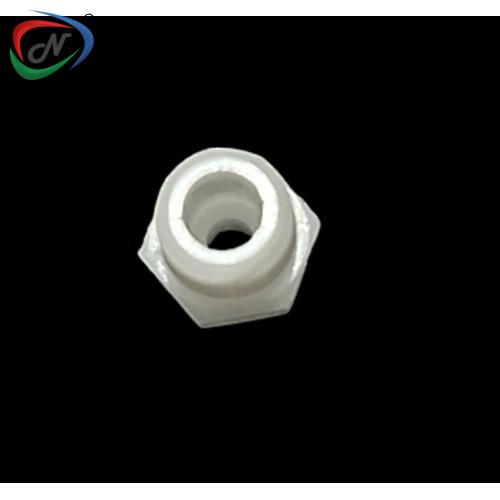

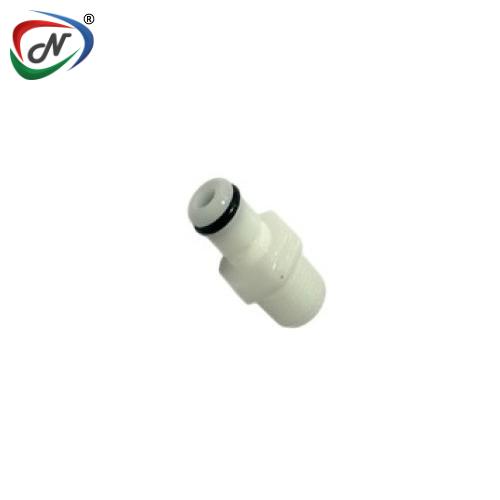

PMC2402 1/8 NPT Non-Valved Acetal Coupling Insert

#NSSP003195

Product Description

PMC2402 1/8 NPT Non-Valved Acetal Coupling Insert

PMC Series couplings, designed with a 1/8" flow, are suitable for a diverse range of general-purpose applications. Equipped with the CPC thumb latch, the PMC couplings provide a more user-friendly experience compared to traditional ball-and-sleeve connector designs. Their one-handed connection and disconnection capability, along with integral terminations, position the PMC as a preferred option for both usability and manufacturing efficiency.

These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.

Main Specifications:

Material: Acetal

Material Finish: Natural

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: White

Mounting Option: Thread

Temperature Range: -40°F - 180°F (-40°C - 82°C)

Seal Options: BUNA-N

Valve Option: Non-Valved

Body Type: Insert

Bag Qty: 25

Features	Benefits
Hose barb shroud	Extra protection for the 1/16" hose barb
Integral terminations	Fewer leak points, shorter assemblies, faster installations
Compatible	Mates with PMC12 and MC Series couplings
Clicks when connected	Assurance of a reliable connection
