PMCD18042812 1/4 FUNF VALVED PANEL MOUNT POLYPROPYLENE COUPLING BODY
#NSSP005307
Product Description

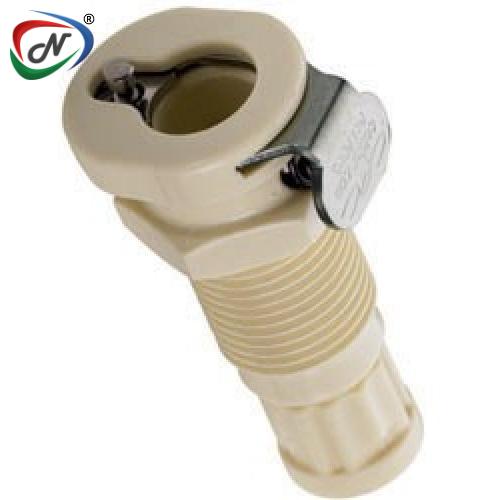

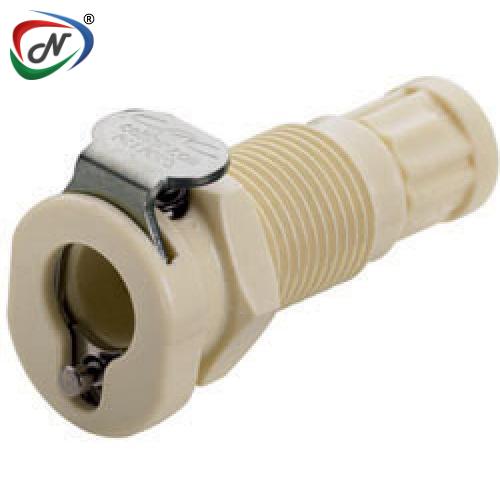

PMCD18042812 1/4 FUNF VALVED PANEL MOUNT POLYPROPYLENE COUPLING BODY
PMC Series couplings, designed with a 1/8" flow, are suitable for a diverse range of general-purpose applications. Equipped with the CPC thumb latch, the PMC couplings provide a more user-friendly experience compared to traditional ball-and-sleeve connector designs. Their one-handed connection and disconnection capability, along with integral terminations, position the PMC as a preferred option for both usability and manufacturing efficiency.
These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.
Main Specifications:
- Material: Polypropylene
- Material Finish: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Almond
- Mounting Option: Panel Mount
- Sterilization Method: Gamma: Up to 50 kGy irradiation
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Inserts
- Bag Qty: 25
Main Features:
- Polypropylene
- EPDM o-ring
- Colder thumb latch
- Integral terminations
Main Benefits:
- Chemically resistant and gamma sterilizable
- Greater chemical resistance
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
Click to download : CPC-PMC12-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP005307 |
| Manufacturer Code | PMCD18042812 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
