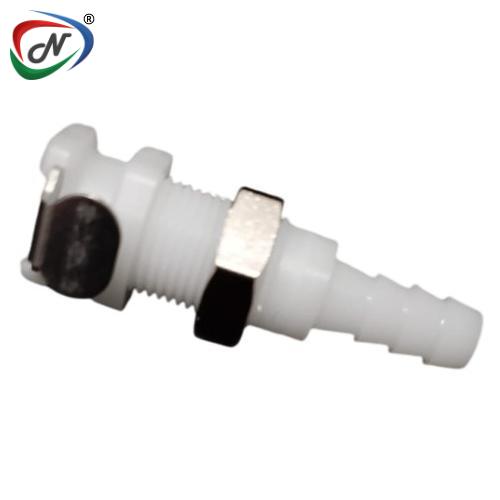

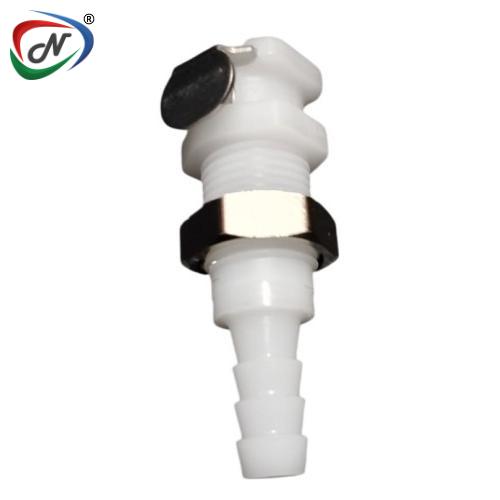

PMCD1604 1/4 Hose Barb Valved Panel Mount Acetal Coupling Body
#NSSP004169
Product Description
PMCD1604 1/4 Hose Barb Valved Panel Mount
Acetal Coupling Body
Main Features:
- Colder
thumb latch
- Integral
terminations
- Clicks
when connected
- Compatible
Main Benefits:
- One-hand
connection and disconnection
- Fewer
leak points, shorter assemblies, faster installations
- Assurance
of a reliable connection
- Mates
with LC and PLC12 Series couplings
Main Specifications:
- Material: Acetal
- Material
Finish: Natural
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting
Option: Panel Mount
- Temperature
Range: -40°F - 180°F (-40°C - 82°C)
- Seal
Options: BUNA-N
- Valve
Spring: 316 Stainless Steel
- Valve
Options: Valved
- Body Type: Bodies
- Bag Qty: 25
COUPLING BODY - Acetal
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ | 6.4mm ID |
STRAIGHT THRU | PMC1604 |
SHUTOFF | PMCD1604 |
A (Height/Diameter) | 0.77 (19.6) |
B (Total Length) | 1.85 (47.0) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-PMC12-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004169 |
| Manufacturer Code | PMCD1604 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
