PMCD1603 3/16 Hose Barb Valved Panel Mount Coupling Body
#NSSP003384
Product Description
PMCD1603
3/16 Hose Barb Valved Panel Mount Coupling Body
Features | Benefits |
Hose barb shroud | Extra protection for the 1/16" hose barb |
Integral terminations | Fewer leak points, shorter assemblies, faster installations |
Compatible | Mates with PMC12 and MC Series couplings |
Clicks when connected | Assurance of a reliable connection |
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 25
COUPLING BODY – Acetal
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 3/16" ID |
METRIC EQ | 4.8mm ID |
STRAIGHT THRU | PMC1603 |
SHUTOFF | PMCD1603 |
A (Height/Diameter) | 0.77 (19.6) |
B (Total Length) | 1.85 (47.0) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

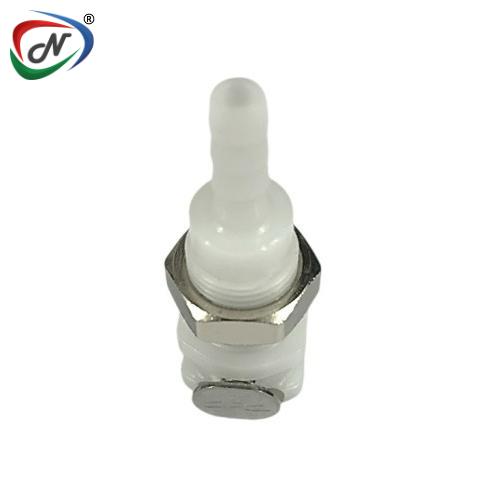

Note: Image is just for ref.
Click to download : CPC-PMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003384 |
| Manufacturer Code | PMCD1603 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.01kg |
| Type | Quick Fittings |
