PMCD160212

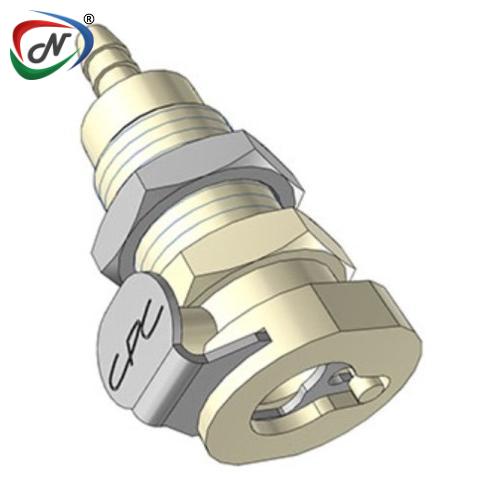

1/8 Hose Barb Valved Panel Mount Coupling Body

PMC Series couplings, designed with a 1/8" flow, are suitable for a diverse range of general-purpose applications. Equipped with the CPC thumb latch, the PMC couplings provide a more user-friendly experience compared to traditional ball-and-sleeve connector designs. Their one-handed connection and disconnection capability, along with integral terminations, position the PMC as a preferred option for both usability and manufacturing efficiency.

These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.

Main Specifications:

• Material: Polypropylene

• Material Finish: Almond

• Pressure Range: Vacuum to 120 psi, 8.3 bar

• Color: Almond

• Mounting Option: Panel Mount

• Sterilization Method: Gamma: Up to 50 KGY irradiation

• Temperature Range: 32°F - 160°F (0°C - 71°C)

• Seal Options: EPDM

• Valve Spring: 316 Stainless Steel

• Valve Options: Valved

• Body Type: Bodies

• Bag Qty: 25

  Features		Benefits
  	Polypropylene		Chemically resistant and gamma sterilizable
  	EPDM o-ring		Greater chemical resistance
  	Colder thumb latch		One-hand connection and disconnection
  	Integral terminations		Fewer leak points, shorter assemblies, faster installations



COUPLING BODIES -  Polypropylene

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
