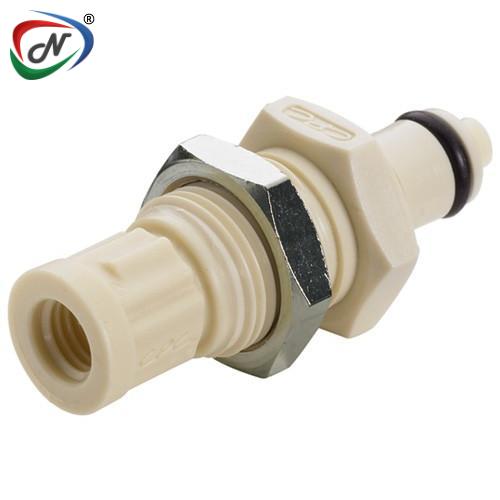

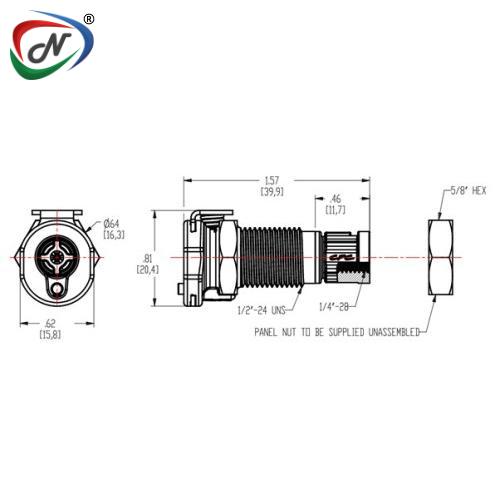

PMC48042812 1/4-28 UNF Female Non-Valved Panel Mount Polypropylene Coupling Insert
#NSSP006377
Product Description
PMC48042812 1/4-28 UNF Female Non-Valved Panel Mount Polypropylene Coupling Insert
The 1/8" flow PMC coupling covers a wide variety of general-purpose applications. Featuring the CPC thumb latch, the PMC is easier to use than ball-and-sleeve designs. One-hand connection/disconnection and integral terminations make the PMC the choice for ease of use and manufacture. This coupling is NuSeal® compatible.
Main Features:
- Non-Spill Design
- Redundant Multi-Lobed Seals
- High Flow Capacity with Low Pressure Drop
- EPDM Or FKM Seals
- Ergonomic Body and Latch Design
- Colour Coding
- Low Profile
- Barbed & Threaded Terminations
Main Benefits:
- Disconnect Under Pressure with no Spills
- Extra Protection from Leaks over an Extended period of Time.
- Efficient, Cost-Effective Cooling System
- Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water, Mineral Oil, Synthetic Oils, Electro cool)
- Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection
- Instant Visual Identification of Cooling Lines.
- Meets size requirements for Space- Constrained Electronics
- Compatibility with various tubing options including reinforced tubing
Main Specifications:
- Material: Polypropylene
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 25
Click to download : CPC-PMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006377 |
| Manufacturer Code | PMC48042812 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
