PMC420212 1/8" Hose Barb Non-Valved Panel Mount Coupling Insert
#NSSP008390
Product Description

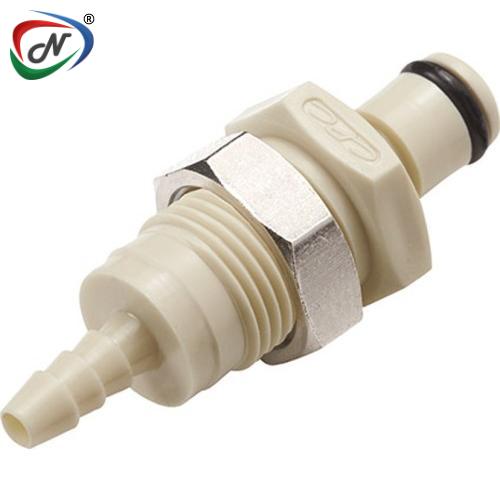

PMC420212 1/8" Hose Barb Non-Valved Panel Mount
Coupling Insert
The PMC12 Series polypropylene couplings feature a 1/8"
flow and are utilized in numerous general-purpose applications. These quick
disconnect couplings provide many of the same configuration options as acetal
PMC couplings; however, the polypropylene material enhances chemical resistance
for more rigorous applications. Additionally, PMC12 couplings are capable of
gamma sterilization. They are either patented or patent pending. These
couplings present the versatility of various configurations and terminations,
allowing them to connect with both PMC acetal and LC metal couplings.
Main Features & Benefits:
|
Features |
Benefits |
||
|
Polypropylene |
Chemically resistant and
gamma sterilizable |
||
|
EPDM o-ring |
Greater chemical resistance |
||
|
Colder thumb latch |
One-hand connection and
disconnection |
||
|
Integral terminations |
Fewer leak points, shorter
assemblies, faster installations |
||
Main Specifications:
- Material: Polypropylene
- Material Finish: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Panel Mount
- Sterilization Method: Gamma: Up to 50 kGy irradiation
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 25
Click to download : CPC-PMC12-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP008390 |
| Manufacturer Code | PMC420212 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
