PMC2201 1/16 Hose Barb Non-Valved In-Line Acetal Coupling Insert
#NSSP006470
Product Description
PMC2201 1/16 Hose Barb Non-Valved In-Line Acetal Coupling Insert
Main Features:
- Hose barb shroud
- Integral terminations
- Compatible
- Clicks when connected.
Main Benefits:
- Extra protection for the 1/16" hose barb
- Fewer leak points, shorter assemblies, faster installations
- Mates with PMC12 and MC Series coupling
- Assurance of a reliable connection
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Options: Non-Valved
- Body Type: Inserts
- Bag Qty: 25

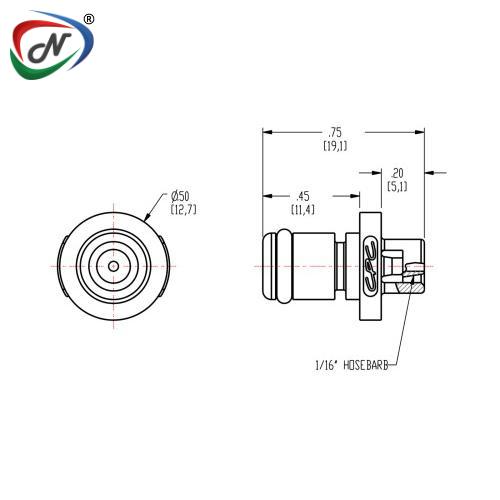

COUPLING INSERT – Acetal
TERMINATION | IN-LINE HOSE BARB (NON-VALVED SHOWN) |
TUBING SIZE | 1/16" ID |
METRIC EQ | 1.6mm ID |
STRAIGHT THRU | PMC2201 |
SHUTOFF | PMCD2201 |
A (Height/Diameter) | 0.5 (12.7) |
B (Total Length) | 0.80/1.47 (20.3/37.3) |
*All measurements are in inches (millimetres) unless otherwise noted. ?Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

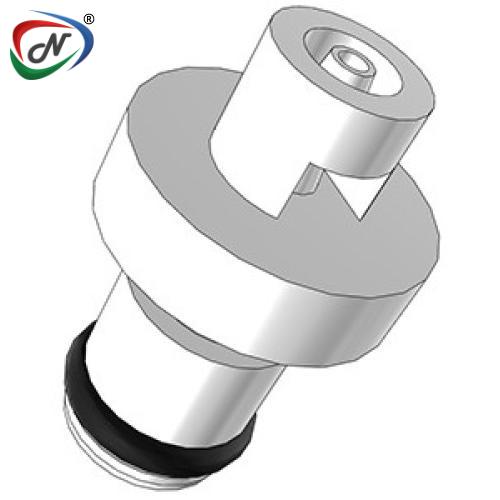

Note: Image is just for ref.
Click to download : CPC-PMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006470 |
| Manufacturer Code | PMC2201 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
