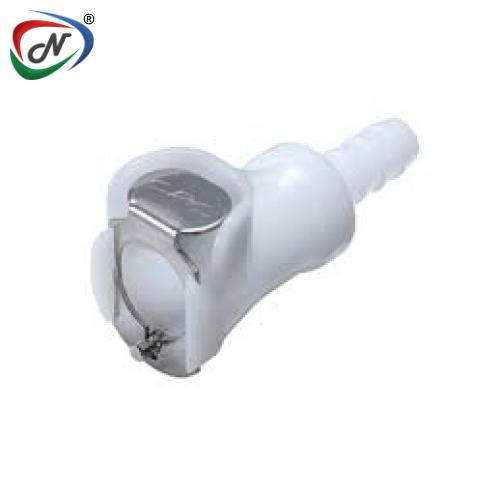

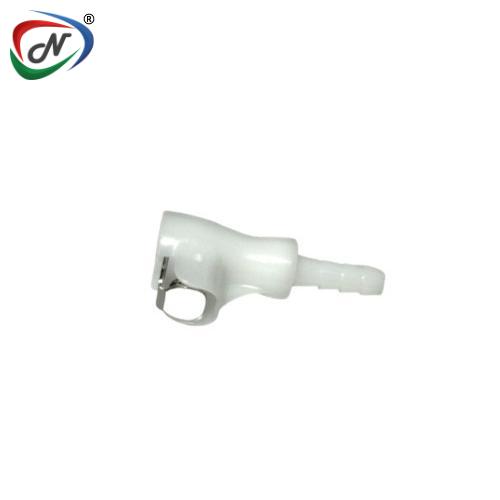

PMC1703 -3/16 Hose Barb Non-Valved In-Line Acetal Coupling Body
#NSSP003410
Product Description
PMC1703 -3/16 Hose Barb Non-Valved In-Line Acetal Coupling Body
PMC Series couplings, designed with a 1/8" flow, are suitable for a diverse range of general-purpose applications. Equipped with the CPC thumb latch, the PMC couplings provide a more user-friendly experience compared to traditional ball-and-sleeve connector designs. Their one-handed connection and disconnection capability, along with integral terminations, position the PMC as a preferred option for both usability and manufacturing efficiency.
These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 25
Main Features:
- Hose barb shroud
- Integral terminations
- Compatible
- Clicks when connected
Main Benefits:
- Extra protection for the 1/16" hose barb
- Fewer leak points, shorter assemblies, faster installations
- Mates with PMC12 and MC Series couplings
- Assurance of a reliable connection
Click to download : CPC-PMC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003410 |
| Manufacturer Code | PMC1703 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.005kg |
| Type | Quick Fittings |
