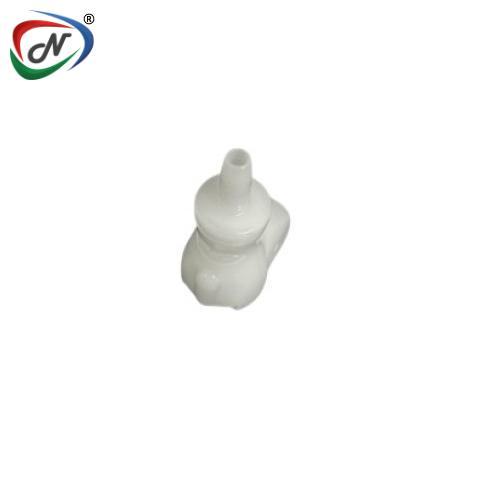

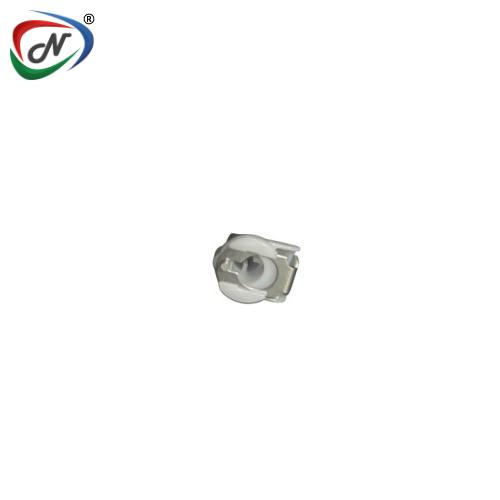

PMC1702 1/8 HOSE BARB NON-VALVED IN-LINE ACETAL COUPLING BODY

#NSSP005566

Product Description

PMC1702 1/8 HOSE BARB NON-VALVED IN-LINE ACETAL COUPLING BODY

PMC Series couplings feature a 1/8" flow and are utilized in numerous general-purpose applications. Equipped with the CPC thumb latch, the PMC design is more user-friendly compared to ball-and-sleeve connector systems. The ability to connect and disconnect with one hand, along with integral terminations, positions the PMC as the preferred option for convenience in both usage and manufacturing.

These couplings provide the versatility of various configurations and terminations, and they are compatible with both MC metal and PMC12 polypropylene couplings. Versions that are NSF-listed can also be obtained.

Features	Benefits
Hose barb shroud	Extra protection for the 1/16" hose barb
Integral terminations	Fewer leak points, shorter assemblies, faster installations
Compatible	Mates with PMC12 and MC Series couplings
Clicks when connected	Assurance of a reliable connection

Main Specifications:

Material: Acetal

Material Finish: Natural

Color: White

Mounting Option: Free Floating

Temperature Range: -40°F - 180°F (-40°C - 82°C)

Valve Options: Non-Valved

Body Type: Bodies

Bag Qty: 25

COUPLING BODIES - Acetal

TERMINATION	IN-LINE HOSE BARB
TUBING/THREAD SIZE	1/8" ID
METRIC EQ.	3.2mm ID
STRAIGHT THRU	PMC1702
SHUTOFF	PMCD1702
A (Height/Diameter)	0.81 (20.6)
B (Total Length)	1.45/1.65 (36.8/41.9)
