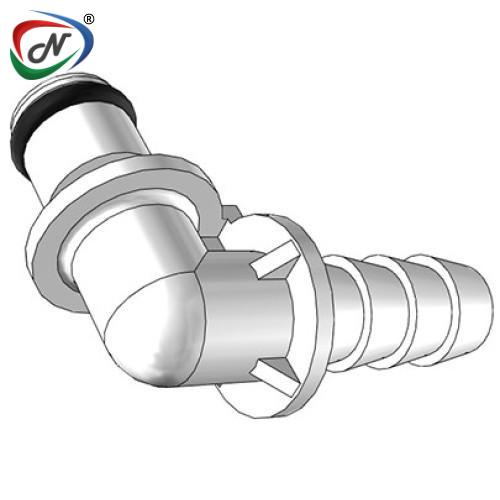

9000100 Panel Mount C2304 FBN  (PMC2304 NSF)

9000100 Panel Mount C2304 FBN  (PMC2304 NSF)

PMC Series couplings, designed with a 1/8" flow, are suitable for a diverse range of general-purpose applications. Equipped with the CPC thumb latch, the PMC couplings provide a more user-friendly experience compared to traditional ball-and-sleeve connector designs. Their one-handed connection and disconnection capability, along with integral terminations, position the PMC as a preferred option for both usability and manufacturing efficiency.

These couplings also present the advantage of various configurations and terminations, allowing compatibility with both MC metal and PMC12 polypropylene couplings. Additionally, NSF-listed versions are offered.

Main Benefits:

• You can quickly connect and disconnect tubes with just one hand — no tools needed.
• PMC couplings have a special seal design that prevents any liquid or gas from leaking out.
• When you disconnect the fitting, the built-in valve stops the flow automatically — this keeps your system clean and safe.
• Made from strong plastic (like polypropylene or acetal), so they’re durable but still very light.
• These couplings can be used in medical, lab, food, and industrial equipment — they’re versatile.
• The inside of the coupling is smooth, so liquid flows easily without getting stuck or slowed down.

Main Features:

• Material: Acetal
• Material Finish: Natural
• Pressure Range: Vacuum to 120 psi, 8.3 bar
• Color: White
• Mounting Option: Free Floating
• Sterilization: Gamma: Up to 50 kGy irradiation
• Temperature Range: 32°F - 160°F (0°C - 71°C)
• Seal Options: BUNA-N
• Valve Spring: 316 Stainless Steel
• Valve Option: Non-Valved
• Body Type: Inserts
• Bag Qty: 25
