12900 1/4 Hose Barb Valved Panel Mount Acetal Coupling Body (PMCD1604 NSF)
#NSSP004235
Product Description

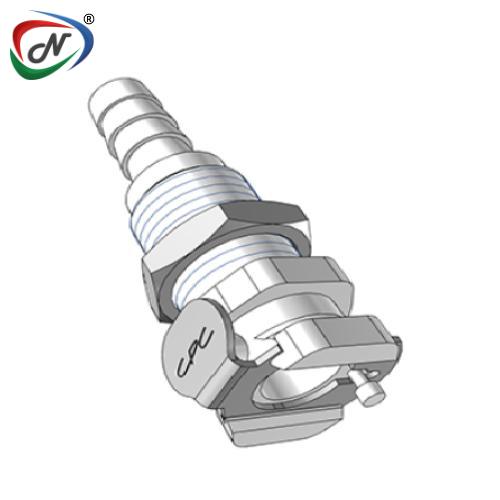

12900 1/4 Hose Barb Valved Panel Mount Acetal Coupling Body (PMCD1604 NSF)
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: FDA BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Body
- Bag Qty: 25
- Hose barb shroud - Extra protection for the 1/16" hose barb
- Integral terminations - Fewer leak points, shorter assemblies, faster installations
- Compatible - Mates with PMC12 and MC Series couplings
- Clicks when connected - Assurance of a reliable connection
COUPLING BODIES - Acetal
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ | 6.4mm ID |
STRAIGHT THRU | PMC1604 |
SHUTOFF | PMCD1604 |
A(Height/Diameter) | 0.77 (19.6) |
B( Total Length) | 1.85 (47.0) |
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-PMC12-Spec-Sheet Click to download : 12900 1/4 Hose Barb Valved Panel Mount Acetal Coupling Body (PMCD1604 NSF) Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004235 |
| Manufacturer Code | 12900 PMCD1604 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
